305-016-556-212

Edgeboard Connectors Overview

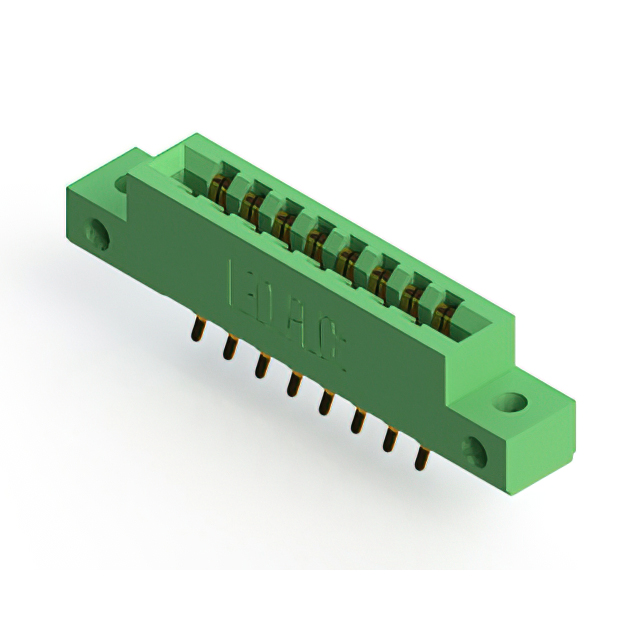

The EDAC 305-016-556-212 is a standard card edge connector header from the 305 series. It features 16 positions with a 3.96 mm (0.156 inch) pitch and two rows of contacts. Designed for panel mount installation at a vertical angle, it utilizes gold-plated copper alloy contacts with solder pin termination. The connector supports a current rating of 5 A and operates within a temperature range of -40°C to +105°C. The housing is green thermoplastic, accommodating board thicknesses between 1.37 mm and 1.78 mm.

Edgeboard Connectors Feature Summary

• Dual-row female contact configuration for non-specified dual-edge card connections
• Gold-plated half-beadlock contact type ensures reliable signal transmission
• Panel-mount design with flush mounting flange and top opening
• Thermoplastic insulator provides structural stability and electrical insulation

Edgeboard Connectors Applications

• CMOS image sensors for mobile applications
• Medical instrumentation and medical imaging equipment
• Music recording systems
• Digital signal processing modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact plating thickness and material specifications. Ensure compatibility with target PCB card thickness limits before procurement. Confirm RoHS compliance status through the latest certified documentation provided by EDAC Inc. or authorized distributors.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge card interface with a 3.96 mm pitch is required. Verify that the application environment falls within the specified -40°C to +105°C operating temperature range. Ensure the mating card thickness aligns with the 1.37 mm to 1.78 mm acceptance window for proper mechanical engagement.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and configurations for industrial and commercial interconnect needs. The 305 series is characterized by its robust panel-mount headers designed for high-reliability applications requiring secure card insertion.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 305 Series Ordering Guide for direct substitutes with different position counts or contact materials. Cross-reference compatible parts within the same series to ensure identical pitch and mounting dimensions.
