305-016-556-508

Edgeboard Connectors Overview

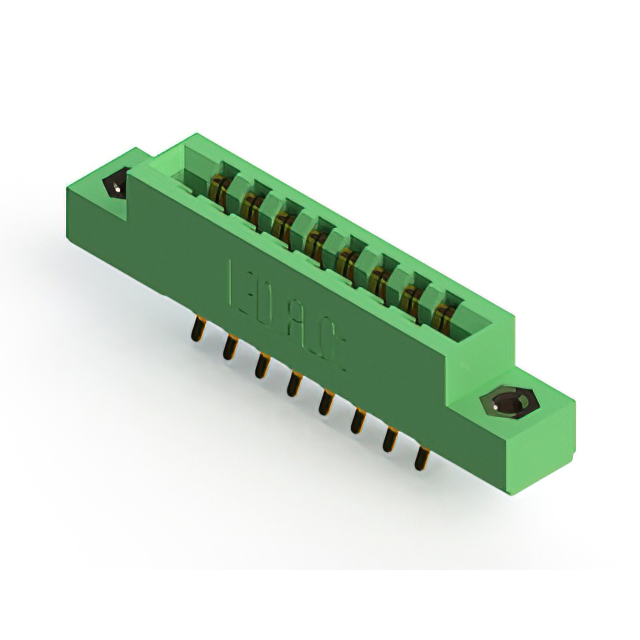

The EDAC 305-016-556-508 is a standard card edge connector from the 305 series, designed for panel mounting in a vertical orientation. It features 16 positions arranged in a dual row configuration with a 3.96 mm (0.156 inch) pitch. The contacts are gold-plated copper alloy, supporting a continuous current rating of 5 A and an insulation resistance of 5 GOhms. The unit accommodates a board thickness of 1.57 mm and utilizes solder pin termination. Operating temperatures range from -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-row female contact design accepting between-contact and in-contact polarizing keys
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Vertical panel mount style with solder pin termination for secure installation

Edgeboard Connectors Applications

• Industrial control systems requiring polarized card edge connections
• Electronic modules needing robust vertical interconnects
• Equipment operating within specified temperature ranges

Edgeboard Connectors Procurement Notes

Verify the specific part number against official EDAC documentation to confirm compatibility with your PCB stack-up and polarizing requirements. Ensure that the selected connector meets the required current and voltage ratings for your application. Cross-reference the datasheet for precise dimensional tolerances and material specifications before finalizing procurement decisions.

Edgeboard Connectors Selection Notes

Select this component when a dual-row card edge connector with a 3.96 mm pitch is required. The 16-position count suits applications needing moderate I/O density. Consider the vertical panel mount style and gold plating for durability. Verify that the housing material and thermal ratings align with the operational environment constraints.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts while maintaining consistent 3.96 mm spacing. These connectors are engineered for high-reliability applications, featuring durable thermoplastic housings and corrosion-resistant contact finishes suitable for demanding industrial environments.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include other EDAC 305 series variants with matching 16-position dual-row configurations and 3.96 mm pitch. Ensure replacement parts maintain identical panel mount orientation and solder pin termination styles to preserve mechanical fit.
