305-018-520-278

Edgeboard Connectors Overview

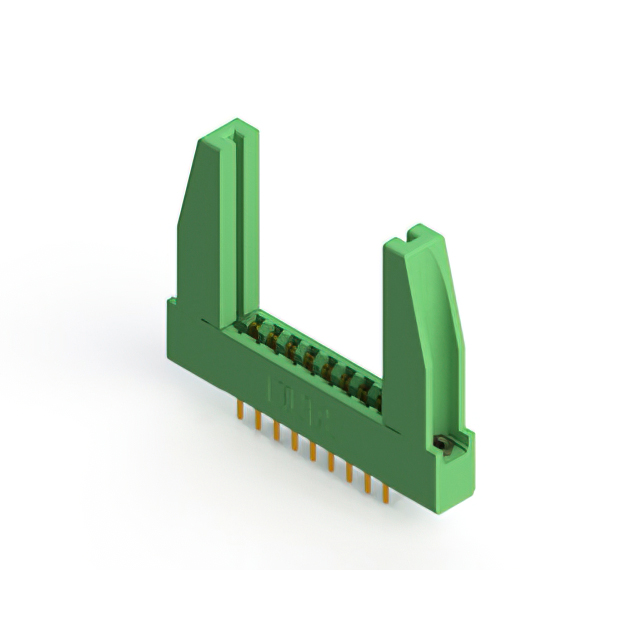

The EDAC Inc. 305-018-520-278 is a standard card edge connector header featuring 18 positions with a 3.96 mm pitch. It utilizes a dual-row configuration designed for vertical panel mounting. The contacts are constructed from copper alloy and finished with gold plating to ensure reliable signal transmission. Rated for 5 A current, the unit supports solder pin termination methods. The insulating housing is made of green thermoplastic material, providing structural integrity and electrical isolation within the specified operating temperature range.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design for secure board insertion
• Vertical panel mount orientation for chassis integration
• Gold-plated copper alloy contacts for corrosion resistance

Edgeboard Connectors Applications

• Industrial control system interface modules
• Telecommunications equipment backplanes
• Embedded computing hardware connections

Edgeboard Connectors Procurement Notes

Verify the specific suffix code against manufacturer documentation to confirm exact housing color and terminal style variations. Confirm RoHS compliance status through official datasheets prior to procurement. Ensure panel cutout dimensions align with the 3.96 mm pitch and 1.57 mm board thickness requirements for proper mechanical fit.

Edgeboard Connectors Selection Notes

Select this component when a 18-position dual-row connection is required with a 3.96 mm spacing. Verify that the target PCB thickness matches the 1.57 mm specification for optimal contact engagement. Consider the vertical mounting style and panel installation method during mechanical design phase to ensure adequate clearance and alignment.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts while maintaining consistent 3.96 mm pitch characteristics. The 305-018-520-278 variant specifically addresses applications requiring 18 contacts with dual-edge female termination capabilities.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 305 series parts sharing identical 18-position count and 3.96 mm pitch specifications. Verify mechanical dimensions and electrical ratings match before substituting.
