305-020-500-502

Edgeboard Connectors Overview

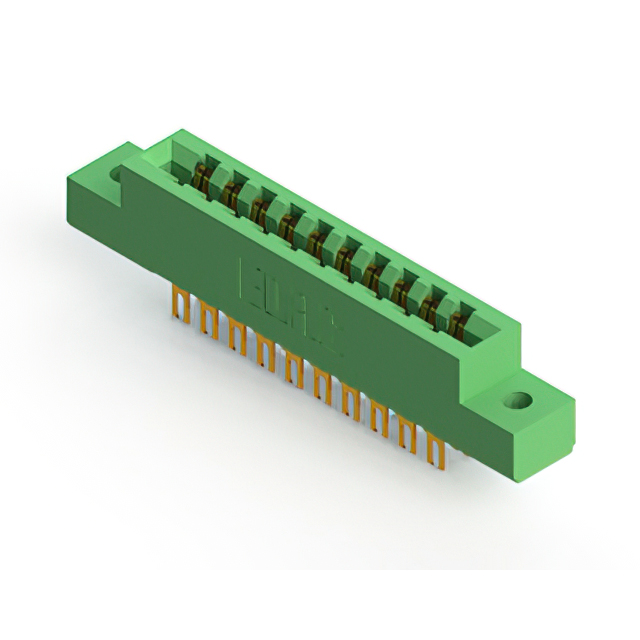

The EDAC Inc. 305-020-500-502 is a standard card edge connector from the 305 series, designed for dual-edge board insertion. It features 20 positions with a 3.96 mm (0.156 inch) pitch and supports a maximum PCB thickness of 1.57 mm. The connector utilizes gold-plated copper alloy contacts to ensure reliable signal transmission and has a continuous current rating of 5 A. It is constructed with a thermoplastic polyester housing in green and offers an insulation resistance of 5 GOhms. The unit operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Accepts between-contact and in-contact polarizing keys for secure board alignment
• Provides high dielectric strength with 1800VACrms voltage capability
• Features gold-plated contacts on a copper alloy substrate for corrosion resistance

Edgeboard Connectors Applications

• Industrial control systems requiring robust card edge interfaces
• Telecommunications equipment utilizing standardized modular connections
• Test and measurement instrumentation needing reliable signal paths

Edgeboard Connectors Procurement Notes

Verify the specific suffix code against the manufacturer's official documentation to confirm exact plating thickness, housing color, and keying options. Ensure that the ordering suffix matches the required polarizing key configuration and contact termination style. Cross-reference the part number with the latest EDAC datasheet to confirm compliance with current RoHS directives and material specifications before final procurement.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge card edge connector with a 3.96 mm pitch is required for panel or PCB mounting applications. Confirm that the target printed circuit board thickness aligns with the 1.57 mm specification. Evaluate the 5 A current rating and 1800VACrms insulation requirements against the system's electrical loads. Ensure compatibility with the 305 series housing dimensions and polarizing key slots.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors, which are engineered for high-reliability interconnect solutions. The series provides various position counts and termination styles while maintaining consistent dimensional tolerances. These connectors are widely utilized in environments demanding stable electrical performance and mechanical durability over extended operational lifespans.

Edgeboard Connectors Replacement Considerations

Consult the EDAC official cross-reference guide for verified substitute part numbers. Ensure any replacement maintains the 3.96 mm pitch, 20-position count, and dual-edge female contact configuration. Verify that alternative models support identical polarizing key acceptance and thermal operating ranges.
