305-020-520-208

Edgeboard Connectors Overview

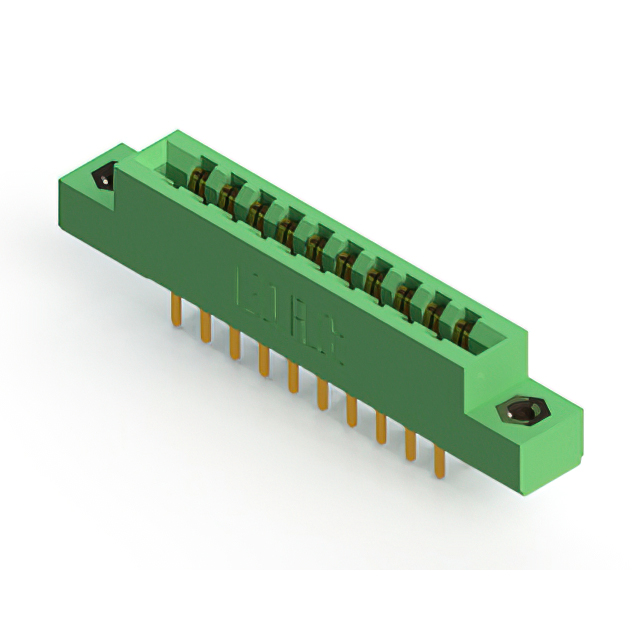

The EDAC Inc. 305-020-520-208 is a standard card edge connector from the 305 series, designed for vertical panel mounting applications. It features a dual-edge female configuration with 20 positions arranged in two rows. The connector utilizes a 3.96 mm (0.156 inch) contact spacing and accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). Electrical specifications include a current rating of 5 A and an insulation resistance of 5 GOhms. The contacts are constructed from copper alloy with gold plating, while the insulator body is made of green thermoplastic polyester. Operating temperatures range from -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Vertical panel mount design with solder lug termination
• Dual-edge female contact configuration for board insertion
• Gold-plated copper alloy contacts for reliable conductivity
• Thermoplastic polyester insulator body with low profile

Edgeboard Connectors Applications

• Industrial control system interconnections
• Panel-mounted electronic module interfaces
• Telecommunications equipment backplanes
• Test and measurement instrument connections

Edgeboard Connectors Procurement Notes

Verify the specific suffix code against the manufacturer's official ordering guide to confirm exact termination style and flange characteristics. Confirm RoHS compliance status through the latest datasheet revision. Ensure the target PCB thickness aligns with the specified 1.57 mm acceptance range. Cross-reference the part number with authorized distributors to validate current availability and lead times.

Edgeboard Connectors Selection Notes

Select this component when a vertical panel-mount interface is required for double-sided edge cards. The 3.96 mm pitch suits applications needing robust mechanical retention. Verify that the 5 A current rating meets the circuit requirements. Consider the operating temperature range if the environment exceeds standard limits. Ensure compatibility with the mating card dimensions and surface finish requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and termination options. The 305 series is characterized by its thermoplastic insulators and gold-plated contacts. It provides a standardized solution for connecting double-sided edge cards to panel-mounted receptacles in various electronic assemblies.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 305 series ordering guide for alternative position counts or termination styles within the same family. Verify mechanical compatibility before substituting with other manufacturers' products. Ensure equivalent electrical ratings and material specifications are maintained.
