305-024-500-208

Edgeboard Connectors Overview

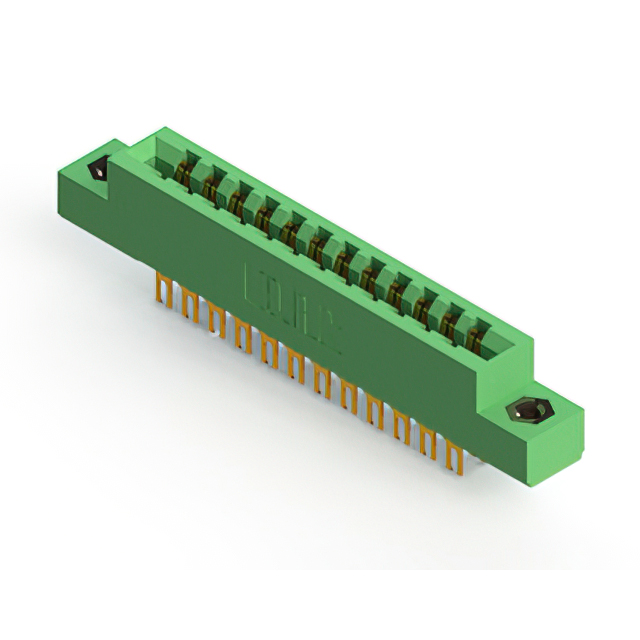

The EDAC Inc. 305-024-500-208 is a standard card edge connector featuring 24 positions with a 3.96 mm pitch. Designed for dual-edge card insertion, it utilizes gold-plated copper alloy contacts to ensure reliable signal transmission. The component supports a continuous current rating of 5 A and withstands 1800 VACrms dielectric voltage. It accommodates PCB thicknesses of 1.57 mm and operates within a temperature range of -40°C to +105°C. The housing is constructed from green thermoplastic material, providing necessary insulation and mechanical stability for panel-mounted applications.

Edgeboard Connectors Feature Summary

• Accepts between-contact and in-contact polarizing keys for secure alignment
• Dual-edge female contact configuration for robust board engagement
• Gold-plated copper alloy contacts for enhanced conductivity and corrosion resistance

Edgeboard Connectors Applications

• Industrial control systems requiring polarized card connections
• Panel-mounted electronic modules needing high dielectric strength
• Telecommunications hardware utilizing dual-edge interface standards

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact termination style and mounting variations. Ensure compatibility with existing polarizing key requirements before integration. Cross-reference the datasheet for precise dimensional tolerances and thermal ratings to validate suitability for the target operating environment.

Edgeboard Connectors Selection Notes

Select this model when a 24-position dual-edge connector with a 3.96 mm pitch is required. Consider the 5 A current rating and 1800 VACrms insulation capability for high-reliability applications. Verify that the target PCB thickness aligns with the specified 1.57 mm requirement for proper mechanical fit and electrical performance.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and termination options while maintaining consistent pitch and housing dimensions. This specific part number represents a 24-position variant designed for dual-edge card applications with gold-plated contacts.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution lists for verified alternative part numbers. Generic equivalents may not support the specific polarizing key mechanisms or dielectric voltage ratings required for this application.
