305-024-500-504

Edgeboard Connectors Overview

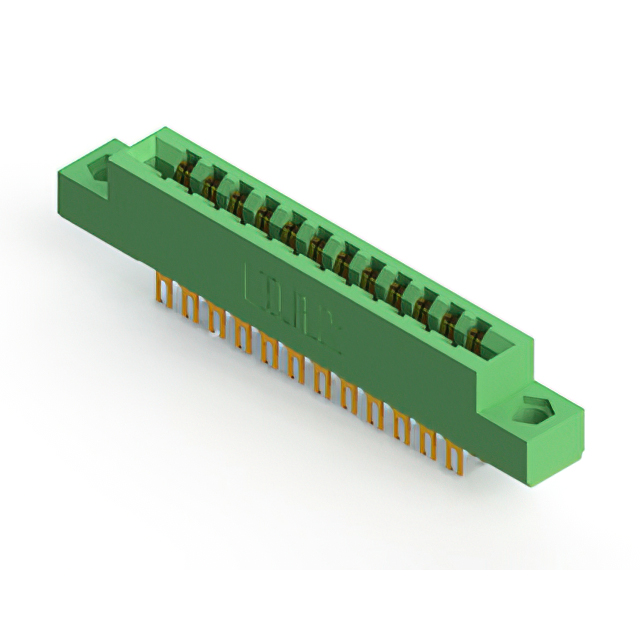

The EDAC Inc. 305-024-500-504 is a standard card edge connector from the 305 series, designed for dual-edge board applications. It features a 24-position configuration with a 3.96 mm pitch and supports a maximum PCB thickness of 1.57 mm. The connector utilizes gold-plated copper alloy contacts to ensure reliable signal transmission and is rated for 5 A current. It employs a solder lug termination method and is intended for panel mounting in a vertical orientation.

Edgeboard Connectors Feature Summary

• Dual-row configuration supporting double-sided card edge insertion
• Gold-plated copper alloy contacts for enhanced conductivity and corrosion resistance
• Solder lug termination style providing secure mechanical attachment

Edgeboard Connectors Applications

• Panel-mounted electronic interconnect systems
• Industrial control module connections
• Communication equipment backplanes

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the manufacturer's official ordering guide to confirm exact plating thickness, insulation material, and flange specifications. Ensure that the selected variant matches the required PCB thickness tolerance and mounting orientation for your enclosure design. Cross-reference the datasheet for environmental ratings such as operating temperature range and compliance standards before finalizing procurement.

Edgeboard Connectors Selection Notes

Select this component when a robust, high-current connection is required for thick circuit boards up to 1.57 mm. The 3.96 mm pitch offers wider spacing compared to finer pitches, reducing crosstalk risks in high-voltage scenarios. Consider the vertical panel mount style if space constraints require a perpendicular interface between the housing and the mating card edge.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series, which provides a range of standard card edge connectors. The series is characterized by its durable thermoplastic polyester housing and versatile mounting options. Similar parts in the series vary primarily by position count, termination style, and specific flange configurations, allowing for modular system design across different industrial applications.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include variants like 305-024-500-202 or 305-024-500-503, provided they match the 24-position count and 3.96 mm pitch. Verify that any replacement maintains the same solder lug termination and vertical mounting angle to ensure physical compatibility with existing panel cutouts.
