305-024-521-203

Edgeboard Connectors Overview

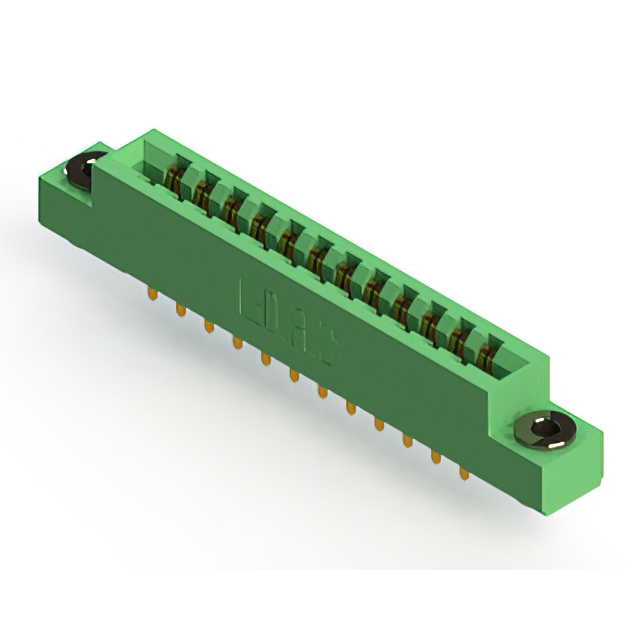

The EDAC Inc. 305-024-521-203 is a standard card edge connector from the 305 series, designed for panel mount applications with a vertical orientation. It features 24 positions across two rows, utilizing a 3.96 mm (0.156 inch) contact spacing and a 3.56 mm row spacing. The connector accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). Constructed with copper alloy contacts that are gold-plated, it supports a continuous current rating of 5 A and withstands 1800 VACrms. The insulator body is made of green thermoplastic polyester, ensuring reliable performance within an operating temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Accepts between-contact and in-contact polarizing keys for secure board alignment
• Features a low-profile insulator body for compact installation requirements
• Utilizes half-beam contact type for robust mechanical retention
• Designed for dual-edge female connection with solder pin termination

Edgeboard Connectors Applications

• Industrial control systems requiring high-reliability interconnects
• Medical equipment interfaces demanding stable signal transmission
• Agricultural technology hardware exposed to harsh environments
• General-purpose electronic assemblies needing standardized card edge mounting

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official EDAC datasheet to confirm exact configuration details. Ensure compatibility with the target PCB thickness of 1.57 mm before integration. Confirm RoHS compliance status matches project regulatory requirements. Cross-reference the manufacturer part number with authorized distributor catalogs to validate authenticity and current production status.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with 24 positions is required for panel-mounted vertical installations. The 3.96 mm pitch suits applications needing wider spacing for high-voltage isolation or ease of assembly. Consider the 5 A current rating and 1800 VACrms dielectric strength for power and signal integrity needs. Verify that the polarizing key acceptance feature aligns with the mechanical design constraints of the enclosure.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors, which are widely used in industrial and commercial electronics. The series offers various position counts and configurations to support diverse interface requirements. Components in this family are characterized by their durability and consistent electrical performance across varying environmental conditions, making them suitable for long-life applications.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include parts with identical pin counts and spacing, such as the 305-024-520-202, though housing color or flange characteristics may differ. Always verify mechanical dimensions and electrical ratings before swapping components to ensure functional equivalence without redesigning the host PCB or enclosure.

Edgeboard Connectors FAQ

Does the 305-024-521-203 accept polarizing keys?

Yes, the 305 series connectors are designed to accept both between-contact and in-contact polarizing keys to ensure correct board insertion.

What is the maximum operating temperature for this connector?

The connector is rated for operation within a temperature range of -40°C to +105°C.

Is the contact surface treatment gold-plated?

Yes, the copper alloy contacts feature a gold plating to ensure reliable conductivity and corrosion resistance.
