305-058-500-202

Edgeboard Connectors Overview

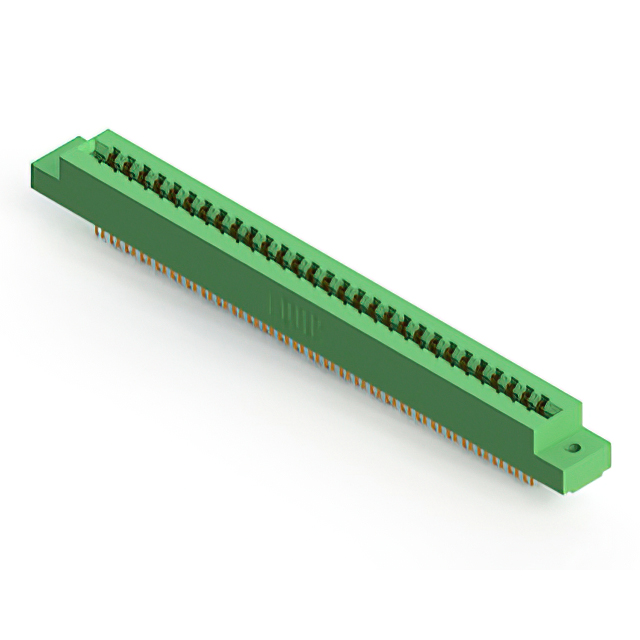

The EDAC Inc. 305-058-500-202 is a standard card edge connector from the 305 series, designed for dual-edge board insertion. It features 58 positions with a 3.96 mm (0.156 inch) pitch and supports a board thickness of 1.57 mm. The connector utilizes gold-plated copper alloy contacts and a green thermoplastic housing. Rated for 5 A current, it employs solder lug termination and panel mount installation at a vertical angle. Operating temperatures range from -40°C to +105°C, with an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board retention
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Thermoplastic housing provides structural integrity and insulation

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Test and measurement instrument modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact plating thickness, housing color, and flange specifications. Ensure compatibility with the target PCB edge thickness and mounting panel requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a high-density 58-position interface is required for dual-edge cards. The 3.96 mm pitch accommodates standard board layouts, while the vertical panel mount style suits chassis-based architectures requiring robust mechanical locking.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and mounting styles, providing modular solutions for diverse electronic assembly needs across industrial and commercial sectors.

Edgeboard Connectors Replacement Considerations

Cross-reference with other 305-series variants such as 305-050-500-202 or 305-058-500-508 for alternative configurations. Verify that pin count, pitch, and termination type match the existing design constraints.
