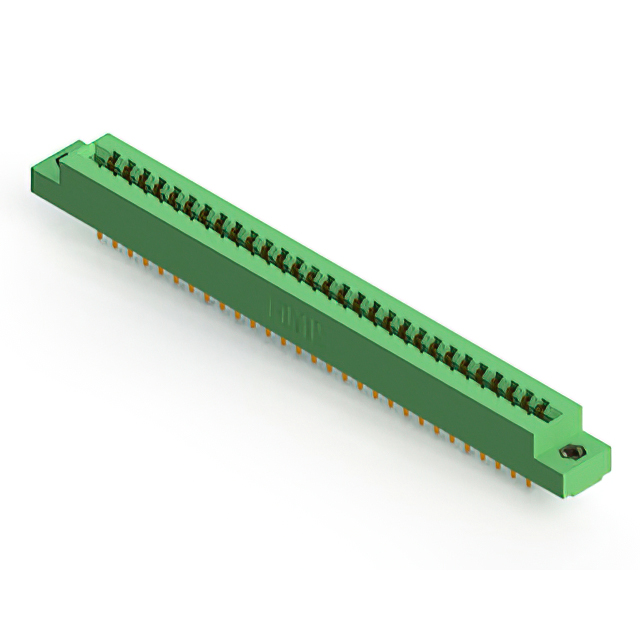

305-058-520-508

$11.11

Description：CONN EDGE DUAL FMALE 58POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box

SKU:e0d54201f5ef Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

305-058-520-508 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 58POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 305-058-520-508

Description：CONN EDGE DUAL FMALE 58POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：29
Number of Positions：58
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：-
Mounting Type：Panel Mount, Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Semi Bellows
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 305-058-520-508

305-058-520-508

Edgeboard Connectors Overview

The EDAC Inc. 305-058-520-508 is a standard card edge connector designed for dual-edge PCB insertion. It features 58 positions with a 3.96 mm (0.156 inch) pitch and supports board thicknesses of 1.37 mm to 1.78 mm. The connector utilizes gold-plated copper alloy contacts rated for 5 A current and offers an insulation resistance of 5 GOhms. Constructed with a green thermoplastic housing, it operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

Dual-edge female contact configuration for secure card insertion
Gold-plated copper alloy contacts ensure reliable signal transmission
Thermoplastic housing provides structural integrity and electrical insulation

Edgeboard Connectors Applications

Industrial control systems requiring robust interconnects
Medical equipment needing reliable signal pathways
Communication infrastructure hardware

Edgeboard Connectors Procurement Notes

Verify the specific part number against official EDAC documentation to confirm compatibility with target PCB stack-up dimensions. Ensure that the required contact finish and current ratings align with system design specifications before procurement. Cross-reference manufacturer datasheets for accurate mechanical drawings and environmental operating limits.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge card interface with a 3.96 mm pitch is required. Confirm that the target printed circuit board thickness falls within the specified 1.37 mm to 1.78 mm range. Evaluate thermal requirements to ensure operation within the -40°C to +105°C envelope matches application constraints.

Edgeboard Connectors Part Context

This model belongs to the EDAC 305 series of standard card edge connectors. The series is characterized by its use in various industrial and commercial applications where reliable vertical panel mounting or through-hole integration is necessary. The product line emphasizes durability and consistent electrical performance across diverse environmental conditions.
