305-058-521-578

Edgeboard Connectors Overview

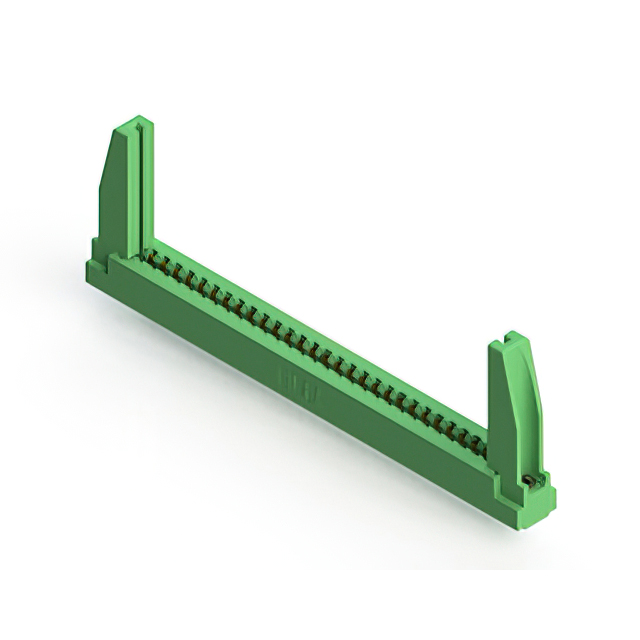

The EDAC Inc. 305-058-521-578 is a standard card edge connector from the 305 series, designed for panel mount applications. It features 58 positions with a contact spacing of 0.156 inches (3.96 mm) and a row spacing of 0.140 inches (3.56 mm). The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). It utilizes gold-plated copper alloy contacts with a termination type of solder pin. The insulator body is green thermoplastic polyester, supporting an operating temperature range from -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female connector design for non-specified card types
• Low profile insulator body construction
• Gold-plated copper alloy contacts for reliable signal transmission
• Panel mount installation style with through-hole solder termination

Edgeboard Connectors Applications

• Industrial control systems requiring robust board-to-board connections
• Communication equipment interfaces
• Medical device internal connectivity
• Energy sector electronic assemblies

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to ensure compatibility with required PCB thickness and mounting hardware. Confirm that the 58-position configuration matches the target application's signal count. Check RoHS compliance status if restricted substances are a concern. Ensure the panel mount style aligns with the mechanical enclosure design before procurement.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge connection with 3.96 mm pitch is required for panels. Consider the 0.140-inch row spacing for density constraints. Verify that the 0.062-inch nominal PCB thickness fits the system design. Compare against other 305 series variants if different position counts or termination styles are needed for the specific assembly requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and mounting options. The 305-058-521-578 specifically provides a 58-position configuration. It is manufactured by EDAC Inc., which specializes in high-quality interconnect solutions for diverse industries including industrial, medical, and communication sectors.

Edgeboard Connectors Replacement Considerations

Check EDAC's official cross-reference guides for direct substitutes within the 305 series. Verify mechanical dimensions and electrical ratings before using any alternative parts. No public confirmed substitute part numbers are available in the provided documentation.
