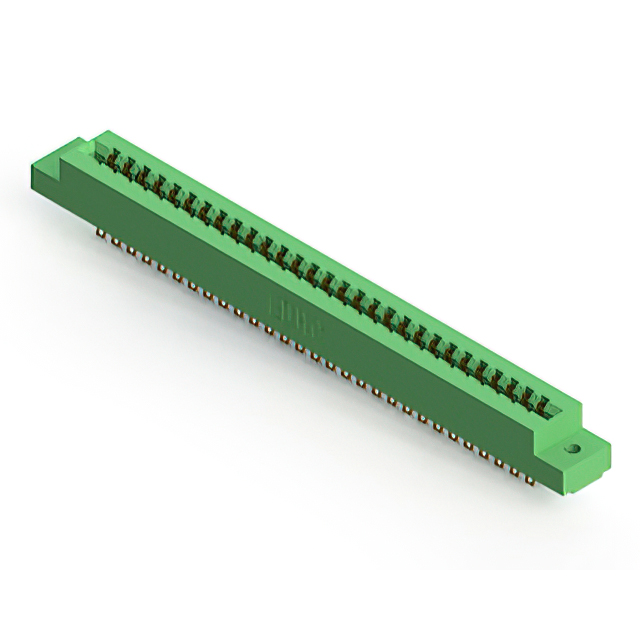

305-058-555-202

$11.03

Description：CONN EDGE DUAL FMALE 58POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box

SKU:e48844568b3e Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

305-058-555-202 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 58POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 305-058-555-202

Description：CONN EDGE DUAL FMALE 58POS 0.156
Series：305
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：29
Number of Positions：58
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.156" (3.96mm)
Read Out：Dual
Features：Card Extender
Mounting Type：Board Edge, Straddle Mount
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Semi Bellows
Color：Green
Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 305-058-555-202

305-058-555-202

Edgeboard Connectors Overview

The EDAC Inc. 305-058-555-202 is a standard card edge connector featuring 58 positions with a 3.96 mm pitch. It utilizes gold-plated copper alloy contacts and accepts printed circuit boards with a nominal thickness of 1.57 mm. The component supports dual-edge connection and operates within a temperature range of -40°C to +105°C. It provides a continuous current rating of 5 A and withstands 1800 VACrms insulation voltage.

Edgeboard Connectors Feature Summary

Dual-edge contact configuration for secure board insertion
Gold-plated copper alloy contacts ensuring reliable conductivity
Low-profile insulator body design for space-constrained applications

Edgeboard Connectors Applications

Industrial control systems requiring robust signal transmission
Telecommunications equipment utilizing standard card edge interfaces
Computing hardware modules needing high-density connectivity

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact pin count, plating thickness, and housing color. Ensure compatibility with target PCB thickness of 1.57 mm. Confirm that the dual-edge configuration aligns with the mechanical constraints of the assembly environment before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this model when a 58-position dual-edge interface is required with a 3.96 mm pitch. It is suitable for applications demanding a 5 A current rating and operation up to +105°C. Consider the low-profile body height if vertical clearance is limited in the enclosure design relative to other series options.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series is characterized by thermoplastic insulation materials and versatile mounting styles. The 305 series generally supports various position counts and row configurations, providing a standardized solution for connecting edge-mounted circuit boards in electronic assemblies.
