Edgeboard Connectors Overview

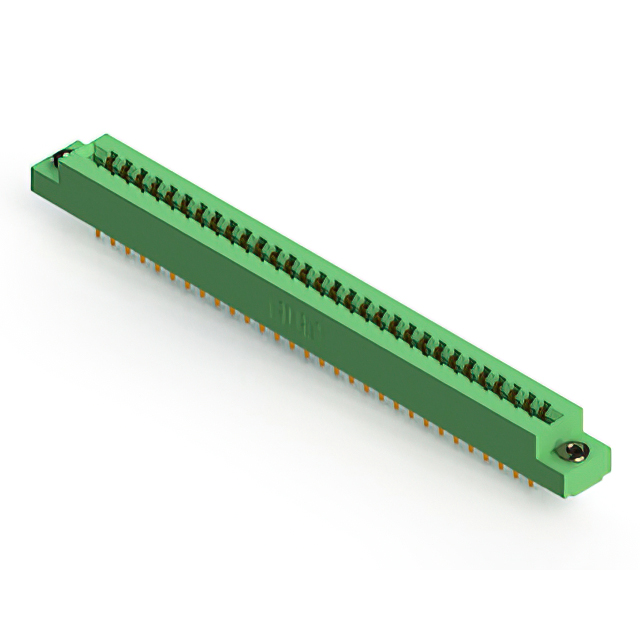

The EDAC Inc. 305-060-520-503 is a standard card edge connector featuring 60 positions with a 3.96 mm (0.156 inch) pitch. Designed for dual-edge card insertion, it utilizes gold-plated copper alloy contacts to ensure reliable signal transmission. The unit supports a continuous current rating of 5 A and withstands 1800 VACrms dielectric voltage. It employs a panel mount style with vertical orientation and solder pin termination. The housing is constructed from green thermoplastic material, accommodating PCB thicknesses of 1.57 mm.

Edgeboard Connectors Feature Summary

• Accepts between-contact and in-contact polarizing keys for secure positioning
• Dual-edge female contact configuration for robust board interface
• Gold-plated contacts provide corrosion resistance and low contact resistance

Edgeboard Connectors Applications

• Industrial control systems requiring high-density interconnects
• Medical equipment utilizing EDAC medical interconnect solutions
• Agricultural technology hardware operating in harsh environments

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer part number against official EDAC documentation to confirm compatibility with your design requirements. Ensure that the receiving facility can handle the specified panel mount installation method. Confirm that the 1.57 mm board thickness matches your printed circuit board specifications before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a 60-position connection is required with a 3.96 mm spacing. The dual-edge design necessitates cards with conductive edges on both sides. Verify that the application environment remains within the operational temperature range and that the 5 A current capacity meets the electrical load demands of the system design.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 305 series, which provides standard card edge solutions. The series includes various position counts and pitch options to support diverse electronic assembly needs. EDAC designs these components to meet rigorous reliability standards for industrial and specialized applications.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult official EDAC resources for potential cross-references or updated series replacements.
