305-060-520-512

Edgeboard Connectors Overview

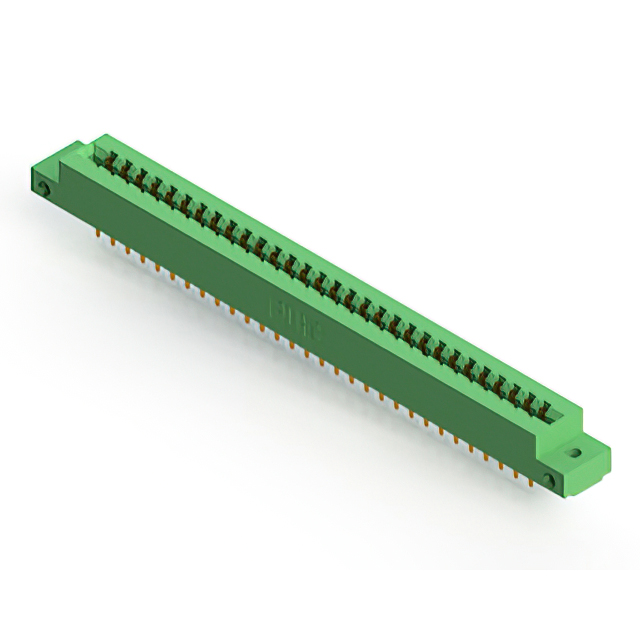

The EDAC Inc. 305-060-520-512 is a standard card edge connector designed for panel mount installation with a vertical orientation. It features a dual female configuration with 60 positions and a pitch of 0.156 inches (3.96 mm). The contacts are constructed from copper alloy with gold plating, rated for 5 A current. The housing is made of green thermoplastic polyester, supporting board thicknesses between 1.37 mm and 1.78 mm. Operating temperatures range from -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design for secure board insertion
• Gold-plated copper alloy contacts ensure reliable conductivity
• Thermoplastic polyester housing provides structural stability
• Vertical panel mount style facilitates organized integration

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Test and measurement instrument modules
• Automotive electronic control units

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and material specifications. Ensure compatibility with target PCB edge thickness ranges before procurement. Confirm RoHS compliance status through the manufacturer's latest datasheet or certification documents to meet regulatory requirements.

Edgeboard Connectors Selection Notes

Select this component when a high-density 60-position connection is required in a vertical panel-mount configuration. The 3.96 mm pitch accommodates standard double-sided card edges. Verify that the application environment falls within the specified -40°C to +105°C operating temperature range for optimal performance and longevity.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and mounting styles. The 305-060-520-512 specifically addresses needs for robust, high-pin-count connections in industrial and commercial electronics where reliable signal transmission is critical.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 305 series variants for different pin counts. Verify mechanical dimensions and electrical ratings match before substituting. No direct public substitutes are confirmed outside the EDAC family without detailed engineering validation.
