305-060-520-578

Edgeboard Connectors Overview

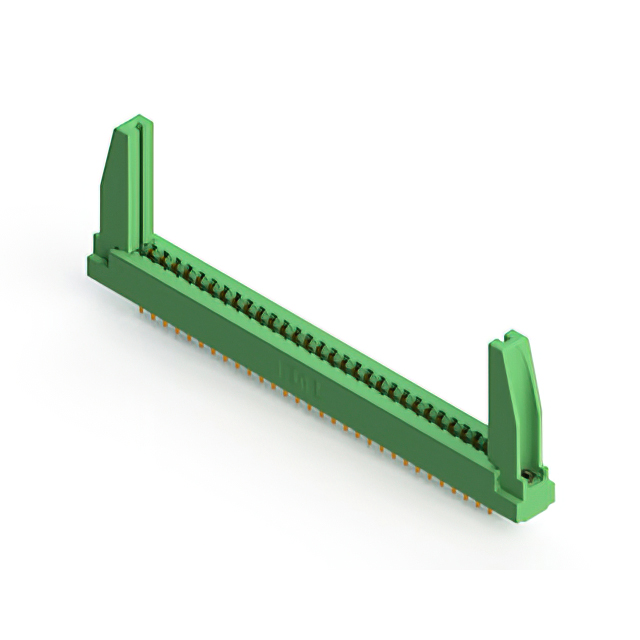

The EDAC Inc. 305-060-520-578 is a standard card edge connector from the 305 series, designed for dual female termination with 60 positions. It features a 3.96 mm (0.156 inch) pitch and accepts board thicknesses between 1.37 mm and 1.78 mm. The unit utilizes gold-plated copper alloy contacts housed in green thermoplastic polyester. Rated for 5 A current, it supports panel mount installation via flanged features with top openings and 4-40 thread inserts. Operating temperatures range from -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for non-specified card edge boards
• Flanged housing design with top openings and threaded inserts for secure panel mounting
• Gold-plated copper alloy contacts ensuring reliable signal transmission
• Thermoplastic polyester insulation providing stability across wide temperature ranges

Edgeboard Connectors Applications

• Industrial control systems requiring robust panel-mounted interconnects
• Telecommunications equipment utilizing standardized card edge interfaces
• Automotive electronics assemblies needing high-reliability connections
• Test and measurement instrumentation panels

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required position count and pitch before ordering. Confirm that the receiving PCB thickness falls within the specified 1.37 mm to 1.78 mm range to ensure proper contact engagement. Check for RoHS compliance requirements if operating in regulated environments. Ensure mounting hardware aligns with the 4-40 thread specification provided in the datasheet.

Edgeboard Connectors Selection Notes

Select this component when a dual-sided female connector with a 3.96 mm pitch is required for panel mounting applications. Consider the 5 A current rating and -40°C to +105°C operating range against system thermal and electrical demands. Evaluate the flanged mounting style against available chassis space and screw access constraints compared to surface-mount alternatives.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and mounting styles to accommodate different interface needs. The 305-060 variant specifically provides a higher density option within the family, maintaining consistent electrical characteristics and mechanical durability standards established by the manufacturer for industrial-grade interconnect solutions.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 305 series parts for alternative position counts or mounting configurations. Verify compatibility with existing PCB layouts and panel cutouts when substituting similar components from the same manufacturer's catalog.
