305-062-500-502

Edgeboard Connectors Overview

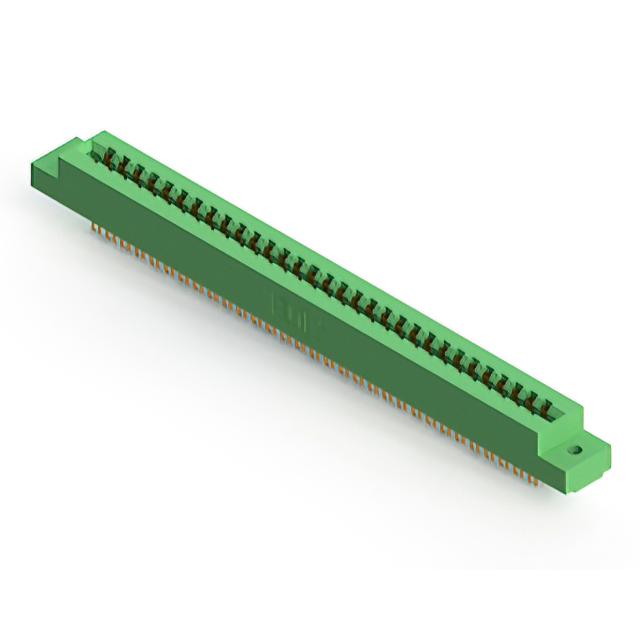

The EDAC Inc. 305-062-500-502 is a standard card edge connector from the 305 series, designed for panel mounting applications. It features 62 positions with a contact spacing of 3.96 mm (0.156 inches) and a row spacing of 3.56 mm (0.140 inches). The connector accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inches). Constructed with copper alloy contacts that are gold-plated, it supports a current rating of 5 A. The housing is made of green thermoplastic polyester, providing an operating temperature range from -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual female configuration with low-profile insulator body design
• Gold-plated copper alloy contacts ensure reliable electrical performance
• Panel mount installation style with vertical orientation

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Communication equipment board connections
• Automotive electronics assemblies

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and material specifications. Ensure compatibility with the target PCB thickness of 1.57 mm before procurement. Confirm RoHS compliance status through the manufacturer's latest datasheet or certification documents to meet regulatory requirements for your specific application environment.

Edgeboard Connectors Selection Notes

Select this component when a dual-row card edge connector with 62 positions is required for panel-mounted installations. The 3.96 mm pitch and 1.57 mm board thickness compatibility define its mechanical fit. Consider the 5 A current rating and -40°C to +105°C temperature range for environmental suitability in industrial or automotive settings.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and mounting styles, utilizing thermoplastic polyester housings and gold-plated contacts. The 305-062 variant specifically provides 62 positions, balancing high density with standard spacing dimensions for reliable signal and power transmission.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 305 series parts such as 305-062-520-268 for similar specifications but verify end-type differences. Ensure any substitute matches the 62-position count, 3.96 mm pitch, and panel mount requirements.
