305-062-520-204

Edgeboard Connectors Overview

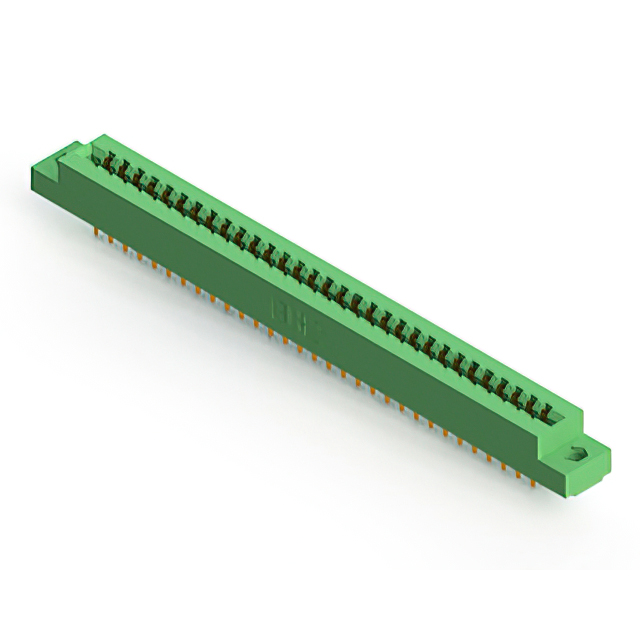

The EDAC Inc. 305-062-520-204 is a standard card edge connector receptacle featuring 62 positions arranged in two rows. It utilizes a 3.96 mm (0.156 inch) pitch and accommodates a board thickness of 1.57 mm. The contacts are gold-plated copper alloy, rated for 5 A current with 5 GOhms insulation resistance. Designed for PCB mount installation at a straight angle, the housing is constructed from thermoplastic polyester. The operational temperature range spans from -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-row female contact configuration for high-density signal routing
• Gold-plated copper alloy contacts ensure reliable conductivity
• Thermoplastic polyester housing provides thermal stability

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment backplanes
• Automotive electronic modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official EDAC datasheet to confirm plating thickness and material specifications. Ensure compatibility with the target PCB stack-up dimensions. Confirm RoHS compliance status through the manufacturer's latest documentation before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-row connection is required for boards with a 1.57 mm thickness. The 3.96 mm pitch suits applications needing moderate density without excessive pin count. Verify that the straight mounting style aligns with the mechanical enclosure constraints and mating card orientation requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 Series, a family of standard card edge connectors. The series offers various position counts and mounting styles. The 305-062-520-204 specifically addresses the need for a 62-position interface within this standardized product line.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 305 series variants for different position counts. Verify mechanical fit and electrical ratings against competitors like Samtec or Molex if sourcing alternatives.
