305-062-520-512

Edgeboard Connectors Overview

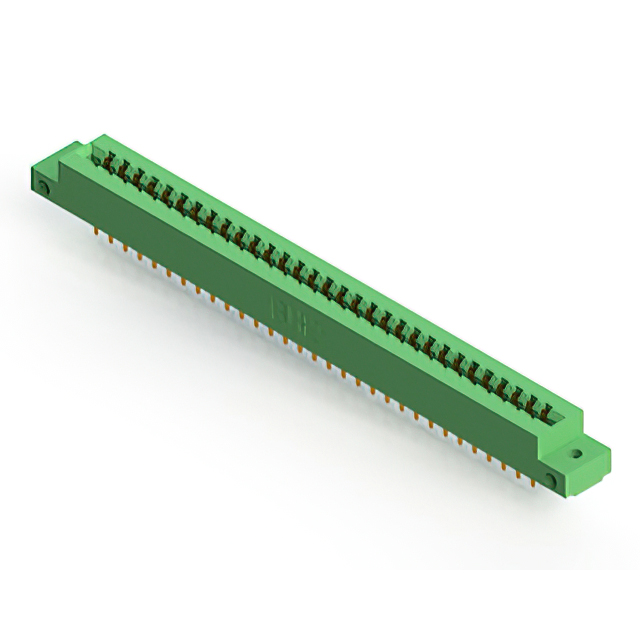

The EDAC Inc. 305-062-520-512 is a standard card edge connector designed for panel mount applications. It features a dual female configuration with 62 positions and a 3.96 mm pitch. The contacts are made of copper alloy with gold plating, rated for 5 A current. The housing utilizes thermoplastic polyester material. It supports a board thickness of 1.57 mm and operates within a temperature range of -40°C to +105°C. The termination type is solder pin.

Edgeboard Connectors Feature Summary

• Dual row female contact configuration for secure card edge insertion
• Gold-plated copper alloy contacts ensure reliable electrical conductivity
• Thermoplastic polyester housing provides structural stability and insulation
• Panel mount installation style with vertical orientation

Edgeboard Connectors Applications

• Industrial control systems requiring robust card edge interfaces
• Communication equipment utilizing standardized modular connections
• Automotive electronics assemblies needing high reliability connectors

Edgeboard Connectors Procurement Notes

Verify the specific part number against official EDAC documentation to confirm compatibility with target PCB designs. Ensure that the required gold plating thickness meets the application's durability standards. Confirm availability through authorized distributors as supply status may vary. Cross-reference mechanical dimensions with enclosure constraints before procurement.

Edgeboard Connectors Selection Notes

Select this component when a dual-row card edge connector with 62 positions is required. The 3.96 mm pitch and 1.57 mm board thickness compatibility must align with the design specifications. Consider the 5 A current rating and operating temperature range for environmental suitability. Verify panel mount requirements match the system integration needs.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and configurations for diverse electronic applications. The 305-062-520-512 specifically addresses needs for higher density connections in panel-mounted setups. It represents a standardized solution within the broader EDAC connector portfolio.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for compatible alternatives. Verify mechanical and electrical parameters match exactly before considering substitutes. Generic equivalents may not guarantee identical performance or fit.
