305-062-521-512

Edgeboard Connectors Overview

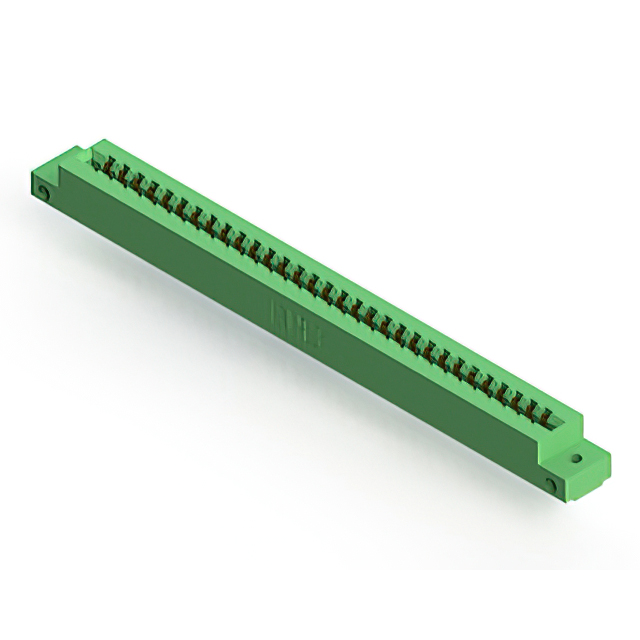

The EDAC Inc. 305-062-521-512 is a dual female card edge connector designed for vertical panel mount applications. It features 62 positions with a 0.156-inch (3.96mm) pitch across two rows. The unit utilizes gold-plated contacts and a green thermoplastic insulator, supporting board thicknesses from 0.054 to 0.070 inches. Rated for -40°C to 105°C, it ensures reliable signal transmission in demanding environments.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure board insertion
• Gold-plated half-wave spring contacts for low resistance
• Vertical panel mount design with flange features
• Thermoplastic polyester insulation for durability

Edgeboard Connectors Applications

• Industrial control system interconnects
• Medical device circuit board connections
• Agricultural technology equipment interfaces
• General-purpose electronic module mounting

Edgeboard Connectors Procurement Notes

Verify the complete part number including suffix codes to ensure correct contact plating and insulator style. Confirm RoHS3 compliance status during sourcing. Check manufacturer standard lead times as availability may vary. Ensure compatibility with specified board thickness ranges before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a high-density 62-position connection is required for vertical mounting. Verify that the 0.156-inch pitch matches the target PCB layout. Consider the operating temperature range of -40°C to 105°C for environmental suitability. Ensure the panel mount flange dimensions align with the enclosure design requirements.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 305 series, which provides standard card edge solutions. The series offers various position counts and mounting options. The 305-062 variant specifically addresses higher density needs within the dual-row format. It shares common design principles with other parts in the family while differing in pin count and specific mechanical details.

Edgeboard Connectors Replacement Considerations

Cross-reference with 355-062-521-512 for potential alternative configurations. Verify mechanical fit and electrical specifications before substitution. Consult manufacturer documentation for exact interchangeability details.
