305-064-520-512

Edgeboard Connectors Overview

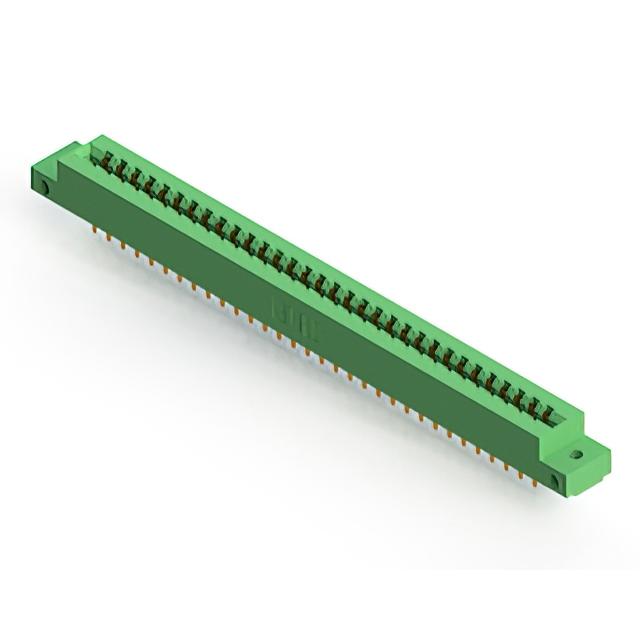

The EDAC Inc. 305-064-520-512 is a standard card edge connector featuring 64 positions arranged in two rows. It utilizes a 3.96 mm (0.156 inch) contact spacing and accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). The component employs gold-plated copper alloy contacts with solder pin termination for secure electrical connections. Designed for panel mount installation, it operates within a temperature range of -40°C to +105°C and carries RoHS compliance.

Edgeboard Connectors Feature Summary

• Dual-edge female connector design accommodating non-specified board types
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Thermoplastic polyester insulator body provides structural stability

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Communication equipment backplanes
• Test and measurement instrumentation interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and material specifications. Ensure compatibility with the target PCB thickness of 1.57 mm before integration. Confirm that the panel mount orientation aligns with the mechanical constraints of the enclosure design.

Edgeboard Connectors Selection Notes

Select this model when high-density connectivity is required alongside durable mechanical performance. The dual-row configuration maximizes pin count within a standard footprint. Verify that the operating environment remains within the specified thermal limits to maintain contact integrity over the product lifecycle.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series, which specializes in standard card edge connectors. The series offers various position counts and row configurations to support diverse electronic assembly requirements. The 305 series is recognized for its consistent dimensional accuracy and reliable solder joint formation.

Edgeboard Connectors Replacement Considerations

Cross-reference part numbers such as 305-064-520-501 or 305-064-520-507 for alternative variants within the same series. Ensure that any substitute maintains identical spacing, row count, and mounting characteristics.
