305-064-521-512

Edgeboard Connectors Overview

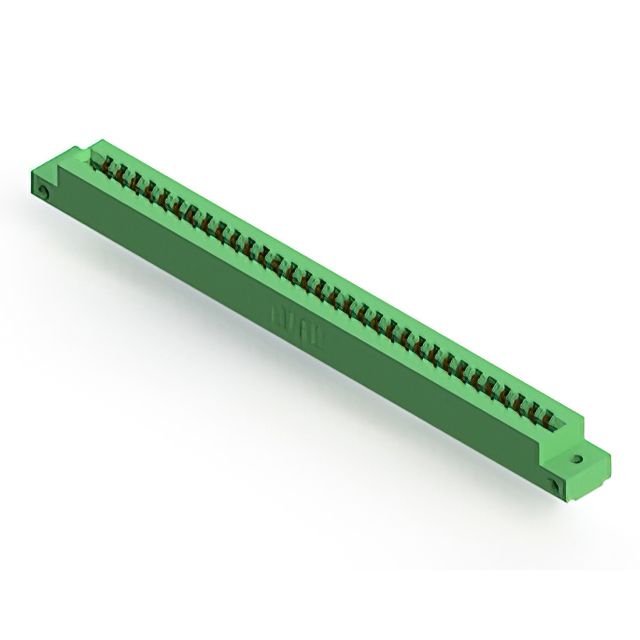

The EDAC Inc. 305-064-521-512 is a dual-row card edge connector designed for panel mount and through-hole termination. It features 64 positions with a 0.156-inch (3.96mm) pitch. The contacts are female, constructed from copper alloy with gold plating. The housing is green thermoplastic polyester, rated for operation between -40°C and +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge configuration supporting non-specified card types
• Gold-plated half-bellows contact type for reliable signal transmission
• Thermoplastic polyester insulation material for thermal stability
• Panel mount installation with flanged design for secure positioning

Edgeboard Connectors Applications

• Industrial control systems requiring robust board-to-board connectivity
• Medical equipment utilizing standardized interconnect solutions
• Agricultural technology hardware operating in harsh environments
• General-purpose electronic assemblies needing high-density connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official EDAC 305 Series Ordering Guide to ensure compatibility with required card thicknesses and mounting styles. Confirm that the gold plating thickness meets application requirements. Check RoHS compliance status as per current manufacturer documentation before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-row interface with a 0.156-inch pitch is required. Ensure the target PCB layout supports through-hole termination and panel mounting constraints. Verify that the operating temperature range of -40°C to +105°C aligns with the environmental conditions of the intended deployment scenario.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 Series, which provides standard card edge connectors for various industrial applications. The series offers multiple position counts and pitch options. The 305-064 variant specifically addresses high-density connection needs within the standard 0.156-inch spacing family.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 305 Series cross-reference data for direct substitutes. Alternative models may include variations in contact length or flange style while maintaining the same pitch and row configuration.
