305-066-556-507

Edgeboard Connectors Overview

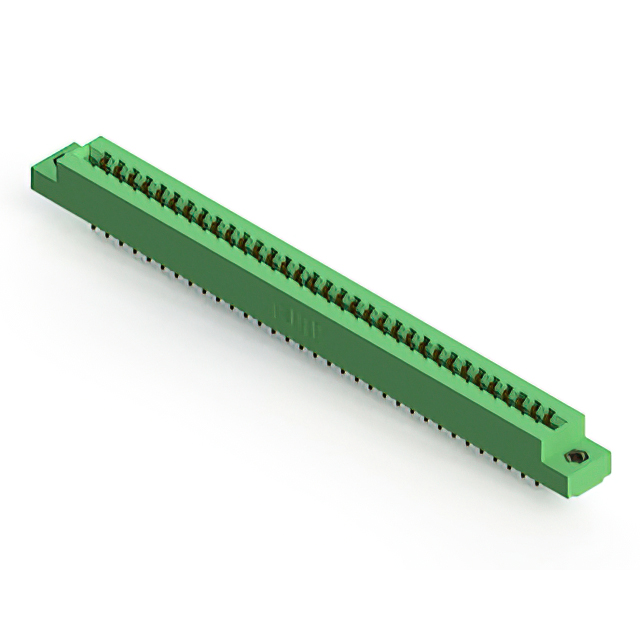

The EDAC Inc. 305-066-556-507 is a standard card edge connector from the 305 series, designed for dual-row applications with 66 positions. It features a 3.96 mm (0.156 inch) contact spacing and a 3.56 mm row spacing. The connector accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch), ranging from 1.37 mm to 1.78 mm. Constructed with copper alloy contacts featuring gold plating, it supports a current rating of 5 A. The unit utilizes a thermoplastic insulator body and offers vertical panel mounting.

Edgeboard Connectors Feature Summary

• Dual-row configuration providing 66 connection points
• Gold-plated copper alloy contacts for reliable conductivity
• Vertical panel mount design for secure installation
• Compatible with 1.57 mm nominal thickness PCBs

Edgeboard Connectors Applications

• Industrial control systems requiring high-density connections
• Telecommunications equipment interfaces
• Computing hardware backplanes
• Test and measurement instrumentation modules

Edgeboard Connectors Procurement Notes

Verify component authenticity through authorized EDAC distributors or certified suppliers. Confirm that the specific suffix matches the required pin count and termination style. Request original manufacturer documentation to validate RoHS compliance and material specifications. Ensure storage conditions prevent moisture absorption in the thermoplastic housing prior to assembly.

Edgeboard Connectors Selection Notes

Select this model when a 66-position dual-row interface is required with a 3.96 mm pitch. Verify that the target PCB thickness falls within the 1.37 mm to 1.78 mm acceptance range. Consider the vertical panel mounting orientation during mechanical layout. Compare against other 305 series variants if different position counts or termination types are needed.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of card edge connectors, which offer various mounting options and row configurations. The series is characterized by its 3.96 mm pitch and robust construction suitable for demanding environments. Related models in the series include 305-066-556-508, differing primarily in packaging or minor structural attributes while maintaining similar electrical performance.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include part numbers such as 305-066-556-508. Verify mechanical compatibility and electrical ratings before substitution. Cross-reference with other manufacturers only if form, fit, and function data sheets confirm identical specifications.
