305-068-521-201

Edgeboard Connectors Overview

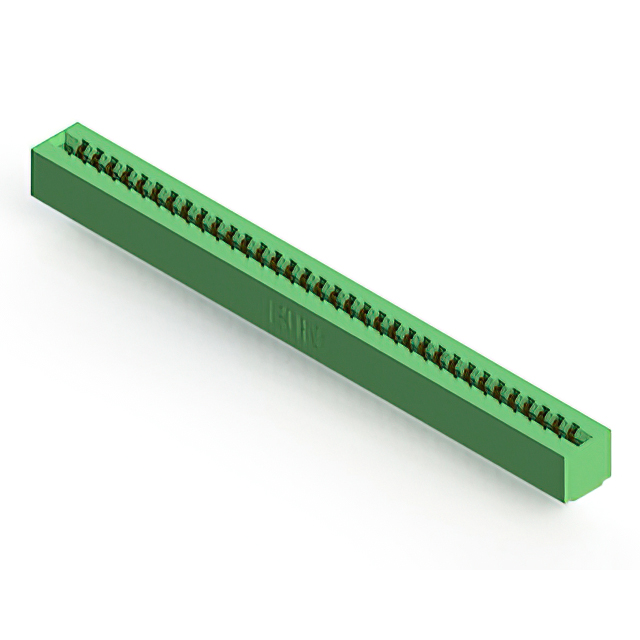

The EDAC Inc. 305-068-521-201 is a dual-edge female card edge connector designed for vertical panel mounting. It features 68 positions arranged in two rows with a 0.156-inch (3.96mm) contact pitch. The connector utilizes solder pin termination and gold-plated copper alloy contacts to ensure reliable signal transmission. It accommodates board thicknesses ranging from 0.054 to 0.070 inches. The insulator is constructed from green thermoplastic polyester, providing durability across an operating temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration supports non-specified dual-sided card insertion
• Gold-plated copper alloy contacts provide corrosion resistance and stable conductivity
• Vertical panel mount design integrates flange features for secure chassis installation

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Test and measurement instrument modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official 305 Series Ordering Guide to confirm compatibility with required board thicknesses and termination styles. Ensure that the selected variant matches the intended panel mounting requirements and environmental specifications before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a high-density dual-edge interface is required for vertical panel applications. Confirm that the target PCB thickness falls within the specified operational range. Evaluate the need for gold plating thickness and verify insulation material properties against thermal constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and termination options tailored for diverse electronic assembly needs. The 305 series is characterized by robust construction suitable for demanding industrial environments.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 305 Series cross-reference documentation for verified substitute part numbers. Do not assume interchangeability with other series without confirming mechanical and electrical parameter alignment.
