Edgeboard Connectors Overview

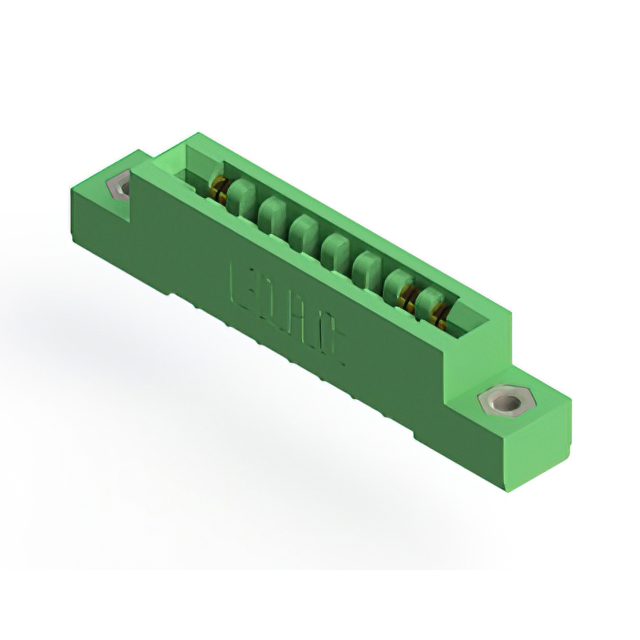

The EDAC Inc. 307-008-521-107 is a standard card edge connector from the 307 series, designed for panel mount applications with a vertical orientation. It features 8 positions arranged in a single row with a contact spacing of 3.96 mm and a row spacing of 5.08 mm. The connector accepts printed circuit boards with a nominal thickness of 1.57 mm. Contacts are made of copper alloy with gold plating to ensure reliable signal transmission. The housing utilizes thermoplastic material, providing an insulation resistance of 5 GOhms. It supports a current rating of 5 A and operates within a temperature range of -40 C to +105 C.

Edgeboard Connectors Feature Summary

• Vertical panel mount design with low profile insulator body
• Gold-plated copper alloy contacts for enhanced conductivity
• Compatible with 1.57 mm nominal thickness PCBs

Edgeboard Connectors Applications

• Industrial control systems requiring robust card edge connections
• Communication equipment utilizing standard board thicknesses
• Automotive electronics interfaces needing high reliability

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm contact configuration and termination style. Ensure the target PCB thickness aligns with the specified 1.57 mm nominal requirement for proper mechanical fit. Confirm RoHS compliance status through the latest regulatory documentation provided by EDAC Inc. prior to finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a single-row vertical connector is required for 8-position interfaces. The 3.96 mm pitch suits applications where space efficiency is balanced with standard board compatibility. Verify that the 5 A current rating meets the electrical load requirements of the specific circuit design before implementation.

Edgeboard Connectors Part Context

This part belongs to the EDAC 307 Series, which specializes in standard card edge connectors. The series offers various position counts and mounting styles while maintaining consistent 3.96 mm contact spacing. The 307-008-521-107 represents a specific configuration within this family, tailored for vertical panel mounting scenarios.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 307 series ordering guide for direct substitutes with different position counts or row configurations. Cross-reference compatible parts from other manufacturers only if they match the exact 3.96 mm pitch and 1.57 mm board thickness specifications.
