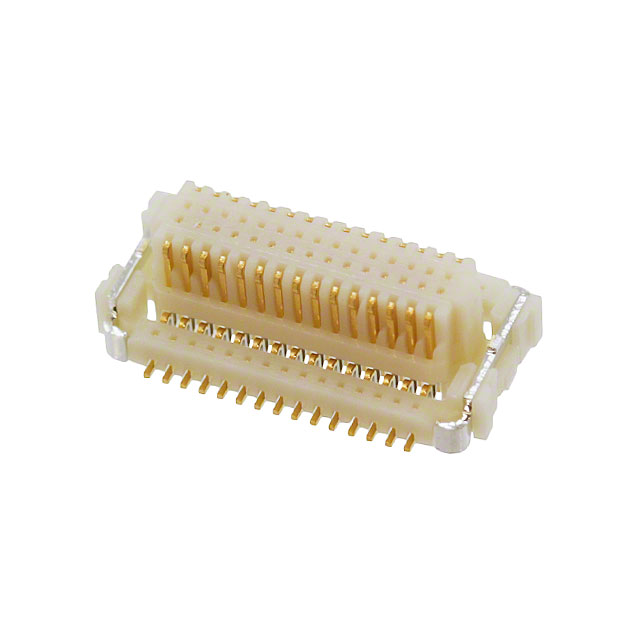

30RF-JMCS-G-1B-TF(N)(LF)(SN)

30RF-JMCS-G-1B-TF(N)(LF)(SN) is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists JST Sales America Inc.. Its product description is CONN RCPT 30POS SMD GOLD. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for 30RF-JMCS-G-1B-TF(N)(LF)(SN)

• Description：CONN RCPT 30POS SMD GOLD
• Series：JMC
• Mfr：JST Sales America Inc.
• Package：Tape & Reel (TR)
• Connector Type：Receptacle, Center Strip Contacts
• Number of Positions：30
• Pitch：0.020" (0.50mm)
• Number of Rows：2
• Mounting Type：Surface Mount
• Features：Board Guide, Solder Retention
• Contact Finish：Gold
• Contact Finish Thickness：-
• Mated Stacking Heights：4mm ~ 11mm
• Height Above Board：0.130" (3.30mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for 30RF-JMCS-G-1B-TF(N)(LF)(SN)
