310-87-104-41-105191

Headers, Receptacles, Female Sockets Overview

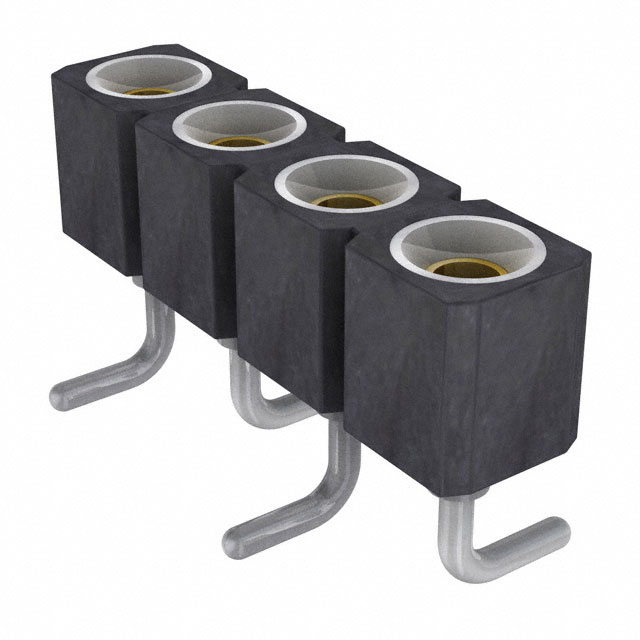

The Preci-Dip 310-87-104-41-105191 is a 4-position socket connector from the 310 series, designed for surface mount applications. It features a 0.100 inch (2.54mm) pitch and utilizes gold-plated contacts with tin-plated tails. The housing is constructed from black PCT material rated UL94 V-0, providing an insulation height of 0.165 inches (4.20mm). This component supports a rated current of 3A and operates within a temperature range of -55°C to +125°C.

Headers, Receptacles, Female Sockets Feature Summary

• Surface mount design for automated PCB assembly
• Gold-plated contact surfaces ensure reliable signal transmission
• UL94 V-0 rated PCT housing provides flame resistance

Headers, Receptacles, Female Sockets Applications

• Board-to-board interconnections
• IC socketing in electronic assemblies
• General purpose circuit board connections

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix against official Preci-Dip documentation to confirm exact plating thickness and packaging configuration. Ensure compatibility with surface mount reflow processes. Confirm that the 4-position variant matches the required footprint and pin count for the target application design.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile surface mount socket is required for 4-pin connections. The 2.54mm pitch ensures compatibility with standard DIP packages. Consider the 3A current rating and high-temperature tolerance for robust performance in demanding environments compared to lower-rated alternatives.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Preci-Dip 310 series of rectangular connectors. The series offers various position counts and mounting styles, including through-hole and surface mount options. The 310-87-104-41-105191 specifically addresses the need for compact, reliable surface mount sockets in modern electronics manufacturing.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes include other 4-position surface mount sockets from the same manufacturer with identical 2.54mm pitch and UL94 V-0 housing. Verify mechanical dimensions and contact plating specifications before cross-referencing with generic equivalents.
