317-034-542-804

Edgeboard Connectors Overview

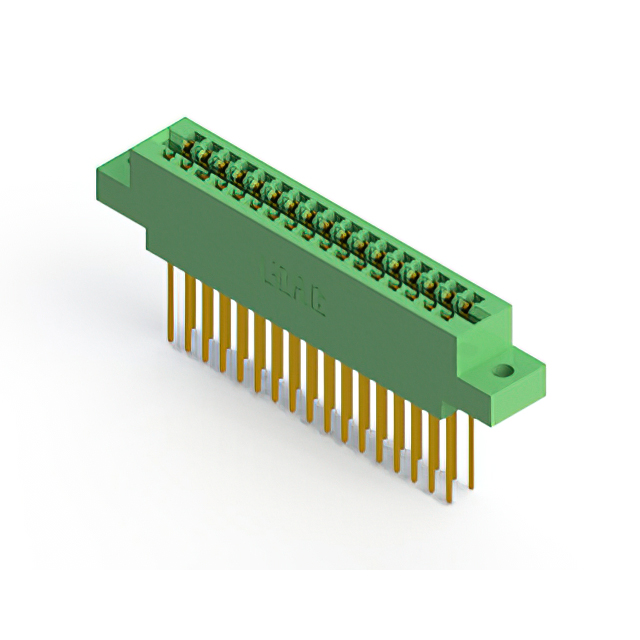

The EDAC Inc. 317-034-542-804 is a standard card edge connector receptacle designed for panel mount applications. It features 34 positions with a dual female contact configuration and a 3.96 mm (0.156 inch) pitch. The unit utilizes wire wrap termination and gold-plated copper alloy contacts to ensure reliable signal transmission. It supports board thicknesses of 1.57 mm and operates within a temperature range of -65°C to 125°C. The housing is constructed from green diallyl phthalate (DAP), providing durability for industrial environments.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design accommodates non-specified double-sided circuit boards.
• Wire wrap termination method ensures secure electrical connections without soldering.
• Gold-plated copper alloy contacts provide corrosion resistance and low contact resistance.
• Panel mount installation style offers stable vertical positioning for edgeboard interfaces.

Edgeboard Connectors Applications

• Industrial control systems requiring robust edgeboard connectivity
• Telecommunications equipment utilizing standard card edge interfaces
• Test and measurement devices needing reliable panel-mounted connectors

Edgeboard Connectors Procurement Notes

Verify the complete part number including suffixes to confirm specific packaging, flange characteristics, and plating thickness requirements. Ensure compatibility with the target PCB thickness of 1.57 mm and verify that the wire wrap termination aligns with the assembly process. Confirm RoHS compliance status and check for any regional distribution restrictions before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-side female connector with a 3.96 mm pitch is required for panel mounting. The wire wrap termination is suitable for high-reliability applications where soldering is not preferred. Consider the operating temperature range and material composition to ensure environmental suitability. Verify that the 34-position count matches the circuit board design specifications.

Edgeboard Connectors Part Context

This component belongs to the EDAC 317 series of standard card edge connectors. The series is characterized by its use of diallyl phthalate insulation and gold-plated contacts. The 317 series provides various position counts and termination options to support diverse electronic interconnection needs in demanding industrial and commercial applications.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include parts with identical pitch and position counts but different termination or flange options. Verify mechanical dimensions and electrical ratings before cross-referencing with other manufacturers' offerings to ensure functional equivalence.
