337-010-558-108

Edgeboard Connectors Overview

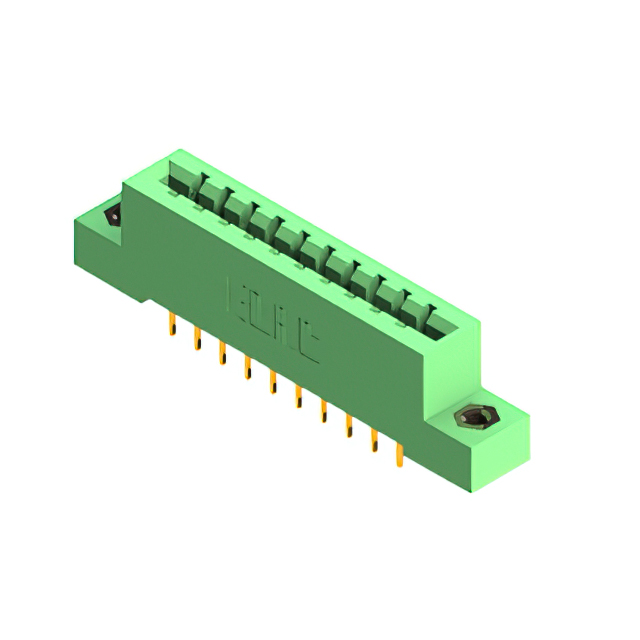

The EDAC Inc. 337-010-558-108 is a standard single-row card edge connector designed for through-hole mounting. It features 10 positions with a 3.96 mm (0.156 inch) pitch and accepts board thicknesses between 1.37 mm and 1.78 mm. The contacts are made of copper alloy with gold plating, rated for 3 A current. The housing is green thermoplastic polyester, and the termination type is wire wrap.

Edgeboard Connectors Feature Summary

• Single-edge female contact configuration for non-specified circuit boards
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Thermoplastic polyester insulation provides structural stability
• Right-angle through-hole installation with wire wrap termination

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Test and measurement instrument modules
• Embedded computing hardware interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix code against the manufacturer's official ordering guide to confirm flange style and termination details. Ensure compatibility with the target PCB thickness range of 1.37 mm to 1.78 mm. Confirm RoHS compliance status if required by project specifications before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a single-row, right-angle connection is required for boards up to 1.78 mm thick. The 3.96 mm pitch suits applications needing robust mechanical retention. Verify that the wire wrap termination method aligns with the assembly process capabilities and that the 3 A current rating meets the electrical load requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 337 series, which offers various position counts and flange configurations. The series is characterized by its use of thermoplastic polyester housings and standardized 3.96 mm spacing. It serves as a modular solution for connecting edge-board circuits in dense electronic assemblies requiring high durability.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 337-series variants sharing the same 10-position count and 3.96 mm pitch. Ensure any substitute matches the single-edge female contact type and through-hole wire wrap termination to maintain mechanical and electrical interface compatibility.
