337-082-523-201

Edgeboard Connectors Overview

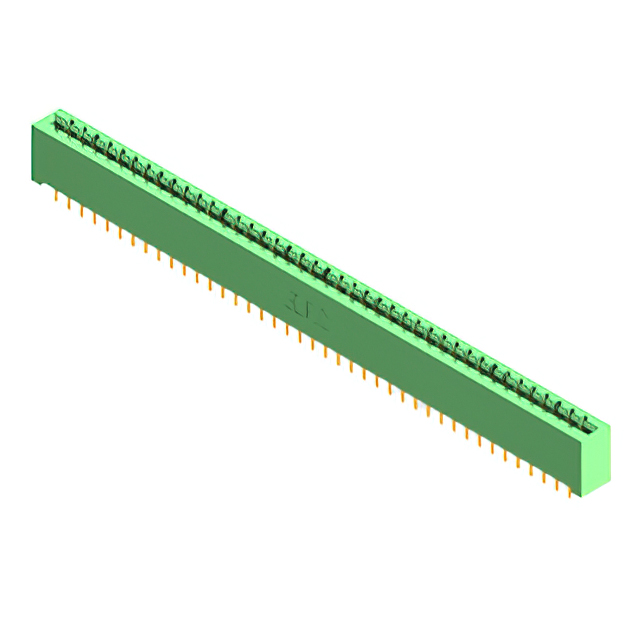

The EDAC Inc. 337-082-523-201 is a standard card edge connector socket designed for dual-sided board insertion. It features 82 positions arranged in two rows with a 3.96 mm (0.156 inch) contact spacing. The unit utilizes copper alloy cantilever contacts with gold plating and terminates via wire wrap connections. It supports PCB thicknesses between 1.37 mm and 1.78 mm, operates within a -40°C to +105°C range, and employs a green thermoplastic polyester insulator.

Edgeboard Connectors Feature Summary

• Dual-row female configuration for double-sided card edge boards
• Wire wrap termination method for secure circuit attachment
• Gold-plated copper alloy cantilever contacts for reliable signal transmission
• Flange features include flush mount, top opening, and threaded inserts

Edgeboard Connectors Applications

• Industrial control system backplanes
• Medical interconnect solutions
• Agricultural technology equipment
• General-purpose electronic module interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to ensure correct flange and termination specifications. Confirm RoHS compliance status through current manufacturer datasheets prior to integration. Check regional distribution availability as supply constraints may apply. Ensure compatibility with target PCB thickness and mounting requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a high-density dual-sided connection is required with wire wrap termination capabilities. The 3.96 mm pitch accommodates standard board layouts while the robust flange design ensures stable mechanical retention. Consider the operating temperature range and material composition for environmental suitability in industrial or medical applications requiring durable interconnects.

Edgeboard Connectors Part Context

This part belongs to the EDAC 337 Series of standard card edge connectors. The series offers various position counts and termination styles tailored for diverse electronic assembly needs. Components in this family are engineered for durability and consistent electrical performance across demanding operational environments.

Edgeboard Connectors Replacement Considerations

Cross-reference with other 337-series variants such as 337-082-542-208 for similar form factors. Verify that alternative parts match the 82-position count, dual-row layout, and wire wrap termination style to maintain mechanical and electrical compatibility.
