345-038-541-104

Edgeboard Connectors Overview

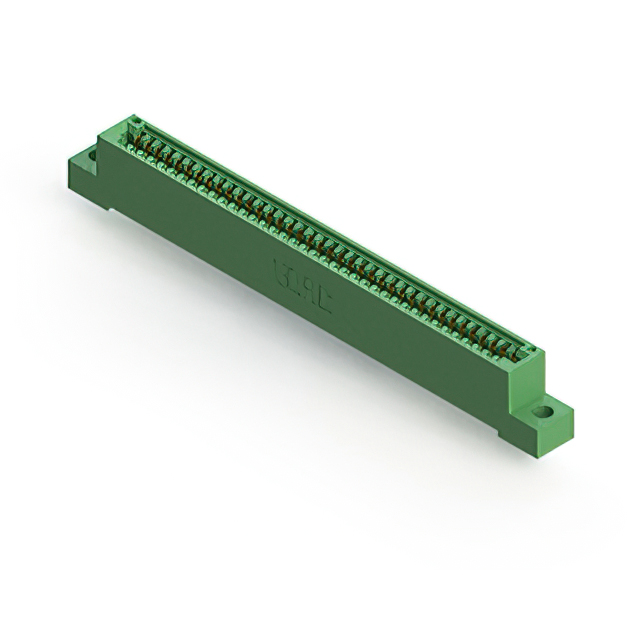

The EDAC Inc. 345-038-541-104 is a standard card edge connector from the 345 series, designed for reliable signal transmission in electronic assemblies. It features 38 positions with a 2.54 mm (0.100 inch) pitch and utilizes gold-plated copper alloy contacts to ensure low resistance and durability. The connector supports a current rating of 3 A and is constructed with a thermoplastic polyester housing. It employs wire wrap termination for secure electrical connections and is intended for panel mounting applications.

Edgeboard Connectors Feature Summary

• Gold-plated copper alloy contacts provide corrosion resistance and stable conductivity
• Thermoplastic polyester housing offers thermal stability and mechanical strength
• Wire wrap termination ensures secure and reliable electrical interconnections

Edgeboard Connectors Applications

• Industrial control systems requiring robust signal connectivity
• Telecommunications equipment utilizing standard board interfaces
• Computing and data storage hardware modules

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required 38-position configuration and 2.54 mm pitch before ordering. Confirm that the wire wrap termination style aligns with the assembly process capabilities. Ensure the panel mounting orientation meets the design constraints. Check RoHS compliance status if environmental regulations apply to the final product deployment.

Edgeboard Connectors Selection Notes

Select this component when a 38-position interface with 2.54 mm spacing is required. The gold plating is suitable for environments where contact reliability is critical. Consider the wire wrap termination method against available assembly tools. Verify that the 3 A current rating satisfies the circuit load requirements without exceeding thermal limits.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 345 series, which provides various positioning options for card edge applications. The series is characterized by standardized dimensions and high-quality materials. Other variants in the series differ primarily in position count and termination styles, allowing for modular design flexibility across different electronic platforms.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 345 series connectors sharing the same 38-position layout and 2.54 mm pitch. Verify compatibility of the wire wrap termination and panel mounting features with existing fixtures.
