Edgeboard Connectors Overview

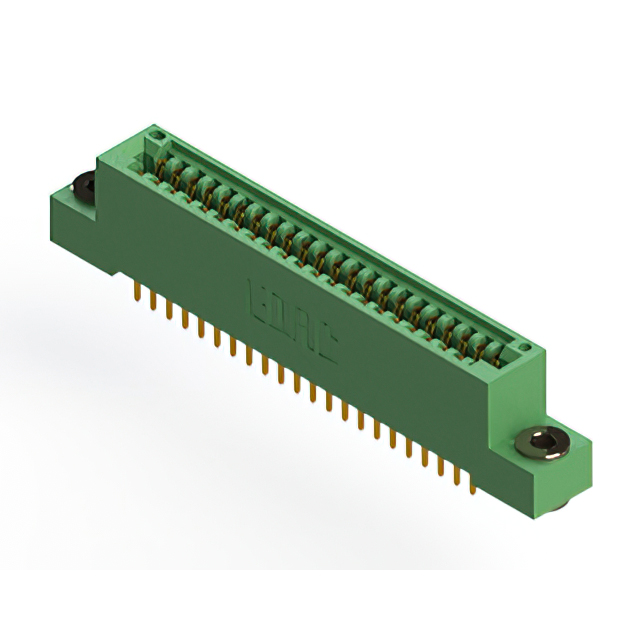

The EDAC Inc. 345-044-521-203 is a standard card edge connector socket from the 345 series, designed for vertical through-hole mounting. It features 44 positions with a 2.54 mm (0.100 inch) pitch and supports a board thickness of 1.57 mm. The contacts are made of copper alloy with gold plating, rated for 3 A current. The housing is constructed from thermoplastic polyester in green, ensuring durability across an operating temperature range of -40°C to +105°C. This dual-row configuration provides reliable signal transmission for electronic assemblies requiring robust interconnect solutions.

Edgeboard Connectors Feature Summary

• Dual-row female contact configuration for high-density signal routing
• Gold-plated copper alloy contacts ensure stable electrical performance
• Thermoplastic polyester insulation offers thermal stability and durability
• Vertical through-hole termination facilitates secure PCB integration

Edgeboard Connectors Applications

• Aerospace and defense systems
• Computing and data storage equipment
• Medical interconnect solutions
• Industrial control modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact mechanical dimensions and flange configurations. Ensure compatibility with the target printed circuit board thickness of 1.57 mm before procurement. Cross-reference the RoHS compliance status with the latest regulatory documentation provided by EDAC Inc. to meet environmental standards for your specific application requirements.

Edgeboard Connectors Selection Notes

Select this component when a dual-row, 44-position interface is required for vertical mounting applications. The 2.54 mm pitch aligns with standard board layouts, while the gold plating supports frequent mating cycles. Consider the -40°C to +105°C operating range for environments with significant thermal variations. Verify that the flush mount or floating bobbin flange options match the chassis design constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 345 series, which specializes in standard card edge connectors for various industrial and commercial sectors. The series offers multiple position counts and row configurations to accommodate diverse connectivity needs. Components in this line are engineered for reliability in demanding environments, providing consistent performance for critical electronic connections in modern hardware designs.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include parts with identical pin counts and pitch, such as the 345-044-521-202 variant. Verify mechanical fit and electrical ratings before swapping. Generic equivalents may lack the specific flange features or material specifications of the original EDAC component.
