345-071-525-108

Edgeboard Connectors Overview

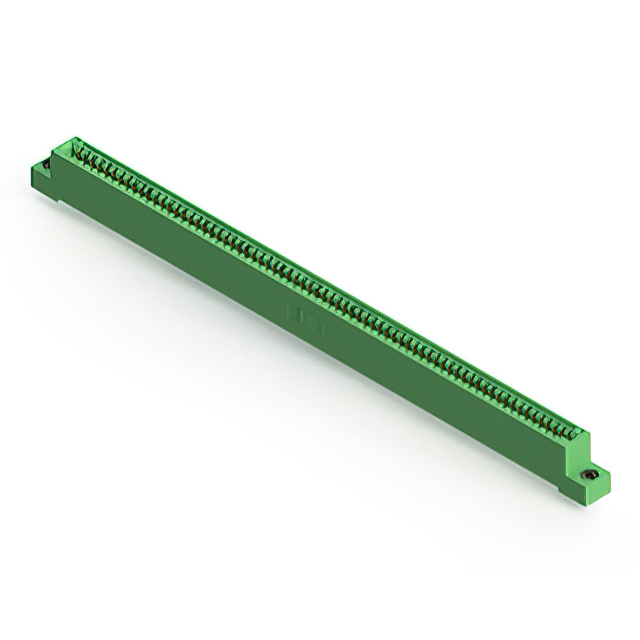

The EDAC Inc. 345-071-525-108 is a standard card edge connector from the 345 series, designed for single-row applications with a .100 inch (2.54mm) pitch. It features 71 positions and utilizes gold-plated copper alloy contacts to ensure reliable signal transmission. The component supports a maximum current rating of 3 A and operates within a temperature range of -40°C to +105°C. Constructed with thermoplastic polyester insulation, it offers an insulation resistance of 5 GOhms. This vertical through-hole device includes flanges for secure mounting and is compatible with PCBs up to 1.57 mm in thickness.

Edgeboard Connectors Feature Summary

• Single-row configuration with 71 positions for high-density interconnects
• Gold-plated copper alloy contacts for enhanced conductivity and corrosion resistance
• Vertical through-hole mounting style with integrated flanges for stability
• Thermoplastic polyester housing providing robust mechanical support

Edgeboard Connectors Applications

• Computing and data storage systems
• Aerospace and defense electronics
• Telecommunications infrastructure
• Industrial control modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact contact plating thickness, housing color, and flange specifications. Ensure compatibility with target PCB stack-up dimensions and verify RoHS compliance status through manufacturer datasheets prior to integration.

Edgeboard Connectors Selection Notes

Select this connector for applications requiring a single-row interface with a 2.54mm pitch. Confirm that the 71-position count aligns with circuit requirements. Verify that the vertical orientation and through-hole termination method match the assembly process and board layout constraints.

Edgeboard Connectors Part Context

This component belongs to the EDAC 345 series of standard card edge connectors. The series provides various position counts and mounting options. The 345-071-525-108 specifically addresses needs for 71-position vertical interconnections with durable gold contacts and thermoplastic insulation.

Edgeboard Connectors Replacement Considerations

Cross-reference part numbers within the EDAC 345 series for alternative position counts or mounting angles. Verify mechanical footprint and electrical specifications before substituting with generic equivalents.
