345-098-525-804

Edgeboard Connectors Overview

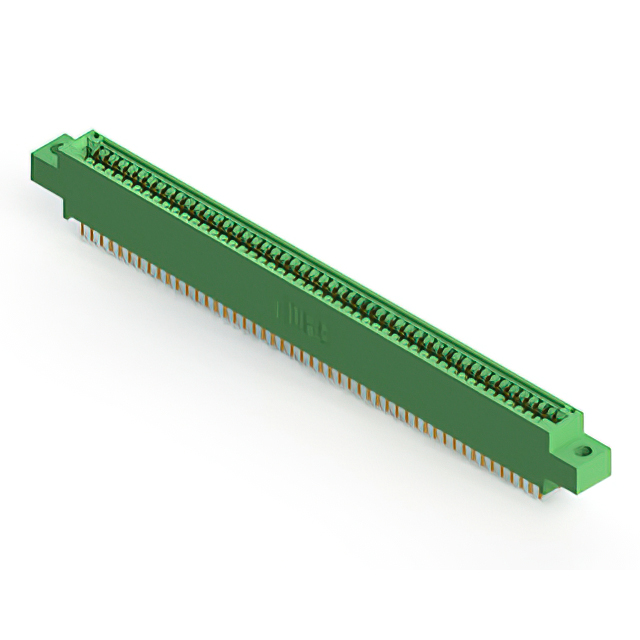

The EDAC Inc. 345-098-525-804 is a standard card edge connector featuring 98 positions with a 0.100-inch (2.54 mm) pitch. Designed for dual female contact interfaces, it utilizes gold-plated copper alloy terminals to ensure reliable signal transmission. The component supports through-hole termination and operates within a temperature range of -40°C to +105°C. Constructed with a thermoplastic polyester housing, this green-colored connector accommodates board thicknesses typically associated with the 345 series specifications.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure mating with card edge PCBs
• Gold-plated terminals provide corrosion resistance and stable electrical conductivity
• Thermoplastic polyester insulation ensures durability in demanding environments
• Through-hole mounting style offers robust mechanical stability on printed circuit boards

Edgeboard Connectors Applications

• Aerospace and defense systems requiring reliable interconnect solutions
• Medical equipment utilizing specialized interconnect components
• Telecommunications infrastructure hardware
• Industrial control and automation systems

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm terminal type and flange configuration. Ensure compatibility with target PCB thickness and panel mounting requirements. Cross-reference RoHS compliance status with current regulatory standards before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this model when a high-density 98-position interface is required with vertical or right-angle mounting options. Confirm that the 2.54 mm pitch aligns with the design layout. Evaluate thermal performance needs against the specified operating temperature range to ensure long-term reliability in the intended application environment.

Edgeboard Connectors Part Context

This component belongs to the EDAC 345 series of standard card edge connectors. The series provides various position counts and termination styles to support diverse electronic assembly needs. It represents a standardized solution for connecting edge-board PCBs to system backplanes or motherboards in professional electronics manufacturing.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 345/395 datasheet for verified substitute part numbers within the same series. Ensure replacement units match the original pin count, pitch, and termination method.
