345-132-523-803

Edgeboard Connectors Overview

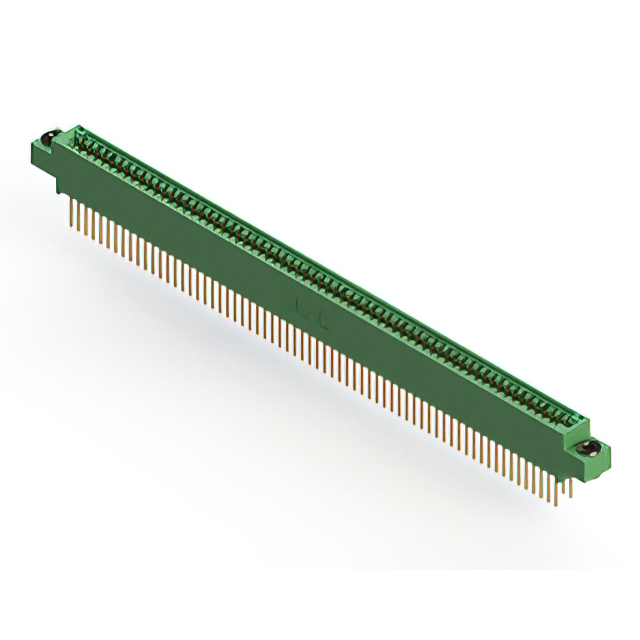

The EDAC Inc. 345-132-523-803 is a standard card edge connector designed for through-hole mounting and solder termination. It features a dual female configuration with 108 positions arranged in two rows of 54 contacts each, utilizing a 0.100-inch (2.54mm) pitch. The connector supports board thicknesses ranging from 0.054 to 0.070 inches and employs copper alloy cantilever contacts with a gold plating finish.

Edgeboard Connectors Feature Summary

• Dual-sided female contact design for robust signal transmission
• Through-hole installation with reliable solder termination
• Gold-plated copper alloy cantilever contacts for durability

Edgeboard Connectors Applications

• Industrial control systems
• Telecommunications equipment
• Computing and data storage devices

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the manufacturer datasheet to ensure correct flange and orientation specifications. Confirm that the target PCB layout accommodates the required through-hole spacing and dual-row footprint before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a high-density dual-edge connection is required for standard thickness boards. Ensure the application environment remains within the specified operating temperature range and that the mating card dimensions align with the connector's mechanical constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 345 series of standard card edge connectors. The series provides various position counts and configurations for general-purpose interconnect applications, offering consistent performance across different industrial and commercial electronic assemblies.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include other EDAC 345 series variants with matching pin counts and pitch, such as the 345-132-523-504, provided the physical mounting requirements are identical.
