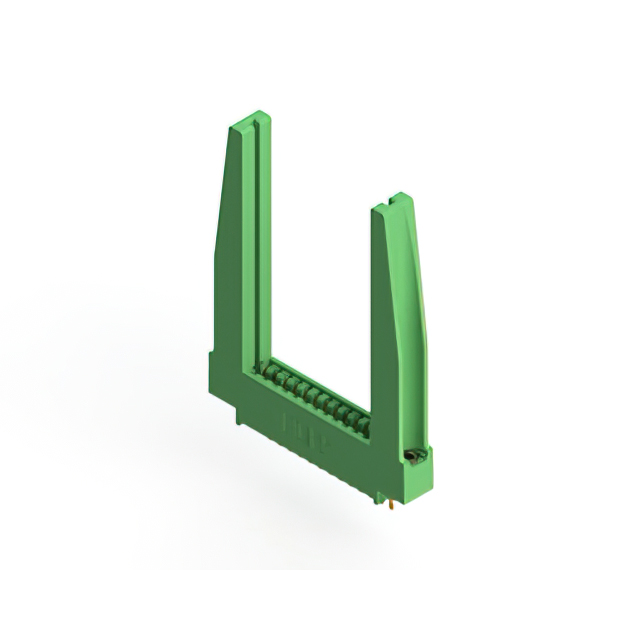

346-013-500-678

$11.21

Description：CONN EDGE SGL FMALE 13POS 0.125
Series：346
Mfr：EDAC Inc.
Package：Box

SKU:266ef25ae7d6 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

346-013-500-678 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SGL FMALE 13POS 0.125. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 346-013-500-678

Description：CONN EDGE SGL FMALE 13POS 0.125
Series：346
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Single Edge
Gender：Female
Number of Positions/Bay/Row：13
Number of Positions：13
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：1
Pitch：0.125" (3.18mm)
Read Out：Single
Features：Card Guides
Mounting Type：Through Hole
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Top Mount Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 346-013-500-678

346-013-500-678

Edgeboard Connectors Overview

The EDAC 346-013-500-678 is a standard card edge connector featuring 13 positions with a 3.175 mm pitch. It supports a maximum board thickness of 1.57 mm and operates vertically. The contacts are gold-plated copper alloy, rated for 3 A current, with an insulation resistance of 5 GOhms. The housing is made of thermoplastic polyester, green in color. Operating temperatures range from -40°C to +105°C.

Edgeboard Connectors Feature Summary

Gold-plated contacts ensure reliable signal transmission and corrosion resistance.
Thermoplastic polyester housing provides structural stability and thermal endurance.
Vertical mounting orientation facilitates efficient panel integration.

Edgeboard Connectors Applications

Industrial control systems
Telecommunications equipment
Automotive electronics

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact contact termination and housing variations. Ensure compatibility with the target PCB thickness of 1.57 mm. Confirm that the vertical mounting style aligns with the mechanical design requirements of the assembly.

Edgeboard Connectors Selection Notes

Select this component when a single-row, vertical card edge interface is required. The 3.175 mm pitch accommodates standard double-sided PCBs up to 1.57 mm thick. Consider the 3 A current rating and high insulation resistance for robust electrical performance in demanding environments.

Edgeboard Connectors Part Context

This part belongs to the EDAC 346 series of standard card edge connectors. The series offers various position counts and termination styles. The 346-013-500-678 specifically denotes a 13-position variant with gold contacts and a thermoplastic polyester housing, designed for general-purpose electronic interconnections.

Edgeboard Connectors Replacement Considerations

Consult official EDAC cross-reference guides for verified substitutes. Generic equivalents may not match the precise 3.175 mm pitch or 1.57 mm board thickness tolerance. Verify material specifications and current ratings before substitution.
