346-017-559-112

Edgeboard Connectors Overview

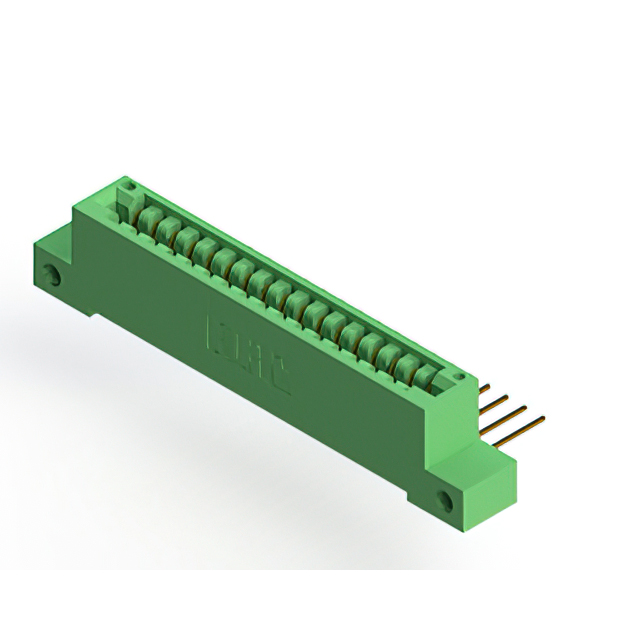

The EDAC Inc. 346-017-559-112 is a standard card edge connector from the 346 series, designed for single-edge board insertion. It features 17 positions with a 3.18 mm (0.125 inch) pitch and supports a maximum operating temperature of +105°C. The connector utilizes gold-plated contacts on a copper alloy base to ensure reliable signal transmission. It is housed in a green thermoplastic polyester casing and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Gold-plated contacts provide corrosion resistance and stable electrical performance
• Thermoplastic polyester housing offers thermal stability and mechanical durability
• Single-row configuration simplifies vertical or angled board integration

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Communication equipment utilizing standard card edge modules
• Automotive electronics applications with moderate thermal demands

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm contact plating thickness and termination style. Ensure the selected variant matches the required PCB thickness tolerance of 1.57 mm. Confirm RoHS compliance status directly with the supplier documentation prior to procurement.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 17-position interface is required with a 3.18 mm pitch. Consider the +105°C maximum operating temperature limit for environmental suitability. Verify that the through-hole or wire-wrap termination method aligns with the assembly process requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 346 series of standard card edge connectors. The series provides various position counts and termination options. The 346-017-559-112 specifically addresses needs for mid-range position counts with high reliability standards in industrial environments.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 346 series variants for different position counts. No direct public substitute part numbers are confirmed in the provided data.
