346-060-522-808

Edgeboard Connectors Overview

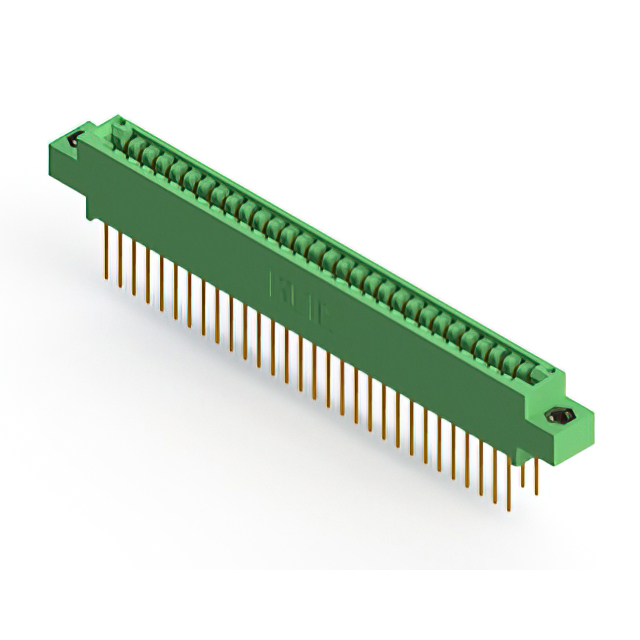

The EDAC Inc. 346-060-522-808 is a standard card edge connector from the 346 series, designed for vertical through-hole mounting. It features a dual female configuration with 60 positions and a contact spacing of 3.175 mm (0.125 inches). The unit supports a maximum board thickness of 1.57 mm and utilizes copper alloy contacts with gold plating. Rated for 3 A current, it employs PC pin termination and thermoplastic polyester housing. Operating temperatures range up to +105°C, with an insulation resistance of 5 Gohms.

Edgeboard Connectors Feature Summary

• Dual row female contact configuration for secure card edge interface
• Vertical orientation with PC pin termination for reliable through-hole assembly
• Gold-plated copper alloy contacts ensuring stable electrical conductivity
• Thermoplastic polyester insulator providing structural integrity and thermal stability

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Communication equipment signal routing
• Automotive electronics module connections
• Medical device internal circuit board interfacing

Edgeboard Connectors Procurement Notes

Verify part authenticity by checking manufacturer markings against official EDAC documentation. Confirm that the specific suffix matches the required flange features and terminal type. Ensure compliance with RoHS directives if applicable to your project requirements. Cross-reference the datasheet specifications for contact material and plating thickness to guarantee performance in your intended environment.

Edgeboard Connectors Selection Notes

Select this component when a dual-row, vertical card edge connector with 60 positions is required. Ensure the PCB design accommodates the 3.175 mm pitch and 1.57 mm board thickness constraints. Verify that the application current does not exceed the 3 A rating per contact. Consider the operating temperature range and insulation resistance requirements for environmental suitability.

Edgeboard Connectors Part Context

This component belongs to the EDAC 346 series of standard card edge connectors. The series offers various position counts and termination styles to support diverse electronic assembly needs. The 346-060-522-808 specifically addresses applications needing high-density vertical connections with durable materials.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 346 series variants with matching 60-position dual-row configurations. Verify compatibility regarding contact spacing, board thickness, and termination style before integration.
