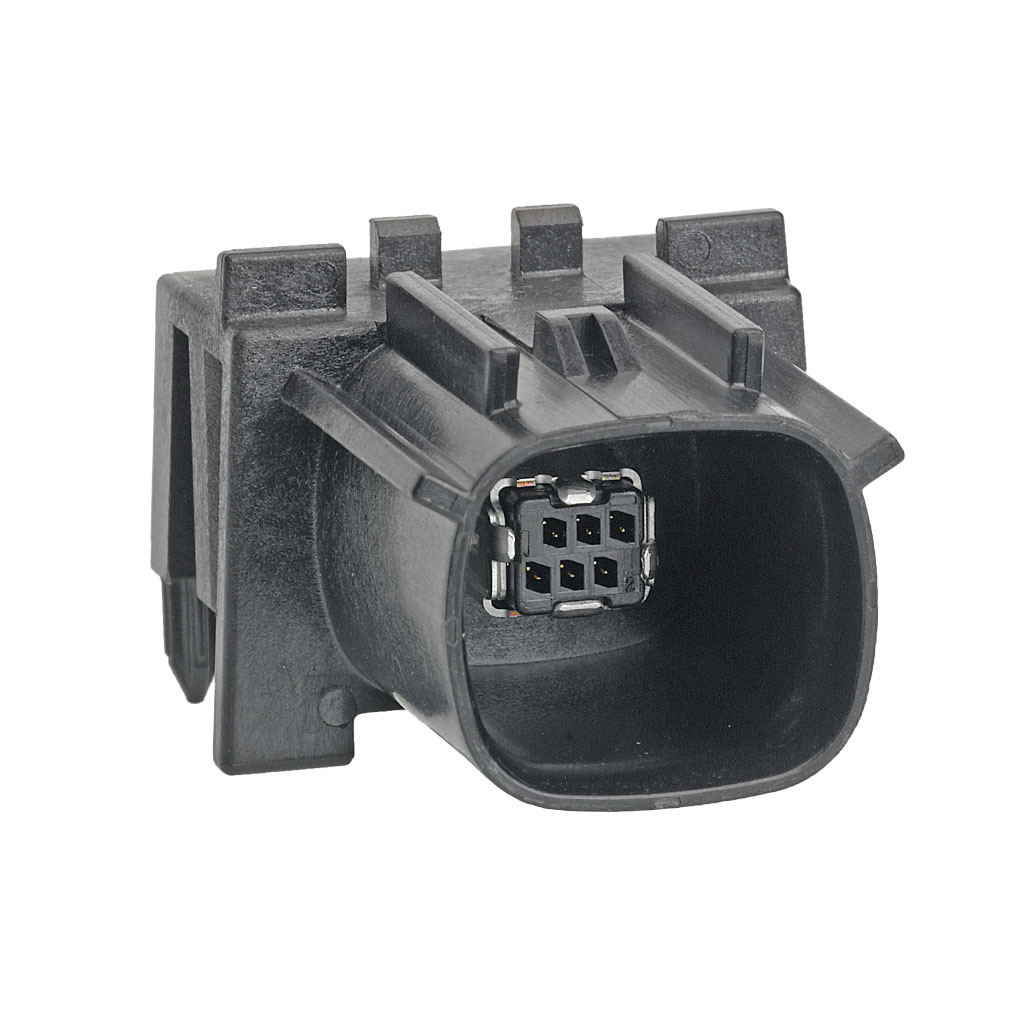

348980503

348980503 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Molex. Its product description is CONN HDR 6POS 0.05 GOLD EDGE MNT. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 348980503

• Description：CONN HDR 6POS 0.05 GOLD EDGE MNT
• Series：HSAutoLink II 34857
• Mfr：Molex
• Package：Tray
• Connector Type：Header
• Contact Type：Female Socket
• Style：Board to Cable/Wire
• Number of Positions：6
• Number of Positions Loaded：All
• Pitch - Mating：0.050" (1.27mm)
• Number of Rows：2
• Row Spacing - Mating：0.050" (1.27mm)
• Mounting Type：Board Edge, Through Hole, Right Angle
• Termination：Solder
• Fastening Type：Locking Ramp
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：16.0µin (0.41µm)
• Insulation Color：Black
• Insulation Height：0.453" (11.50mm)
• Contact Length - Post：-
• Operating Temperature：-40°C ~ 105°C
• Material Flammability Rating：-
• Contact Finish - Post：Tin
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：Board Guide, Sealed
• Current Rating (Amps)：1.5A
• Voltage Rating：36V

Headers, Receptacles, Female Sockets datasheet and documents for 348980503
