387-014-560-204

Edgeboard Connectors Overview

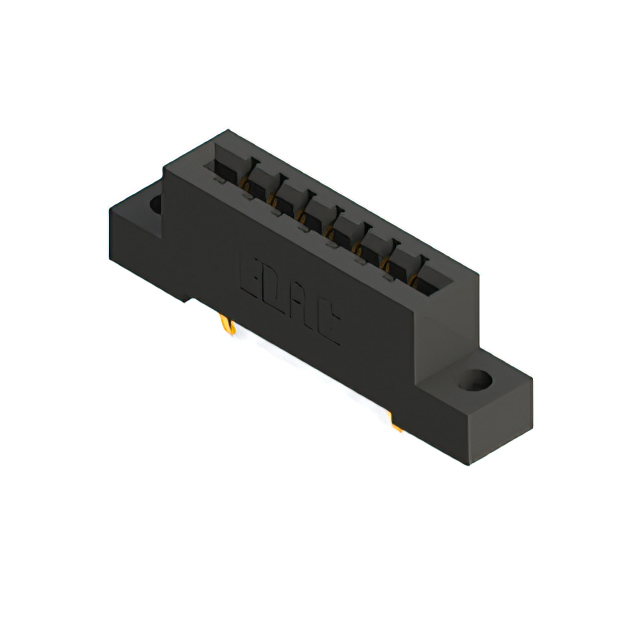

The EDAC Inc. 387-014-560-204 is a dual female card edge connector featuring 14 positions with a 0.156-inch (3.96mm) pitch. It utilizes a two-row configuration and employs wire wrap termination for secure circuit attachment. The housing is constructed from black thermoplastic polyester, while the contacts are made of copper alloy with a gold plating thickness of 10.0µin (0.25µm). Designed for through-hole installation, this component supports board thicknesses ranging from 0.054 to 0.070 inches and operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Dual female contact configuration ensures reliable signal transmission across two rows
• Wire wrap termination provides robust mechanical stability for circuit connections
• Gold-plated copper alloy contacts offer corrosion resistance and low contact resistance

Edgeboard Connectors Applications

• Industrial control system interconnections
• Communication equipment backplanes
• Consumer electronic module interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official 337/387 Series Ordering Guide to ensure compatibility with required flange features and mounting styles. Confirm that the selected variant matches the intended wire wrap termination process and board thickness specifications before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this model when a 14-position dual row interface with a 0.156-inch pitch is required. Ensure the application environment remains within the specified -40°C to 105°C operating range. Verify that the target PCB thickness falls within the 0.054 to 0.070 inch acceptance window for proper engagement.

Edgeboard Connectors Part Context

This component belongs to the EDAC 387 series, which specializes in standard card edge connectors. The series offers various pin counts and termination options, including wire wrap and solder tail variants, designed for high-reliability applications in industrial and commercial sectors.

Edgeboard Connectors Replacement Considerations

Consult the 337/387 Series Ordering Guide for direct substitutes with identical electrical and mechanical parameters. Cross-reference part numbers sharing the same base code but differing only in packaging or minor accessory configurations.
