387-023-559-102

Edgeboard Connectors Overview

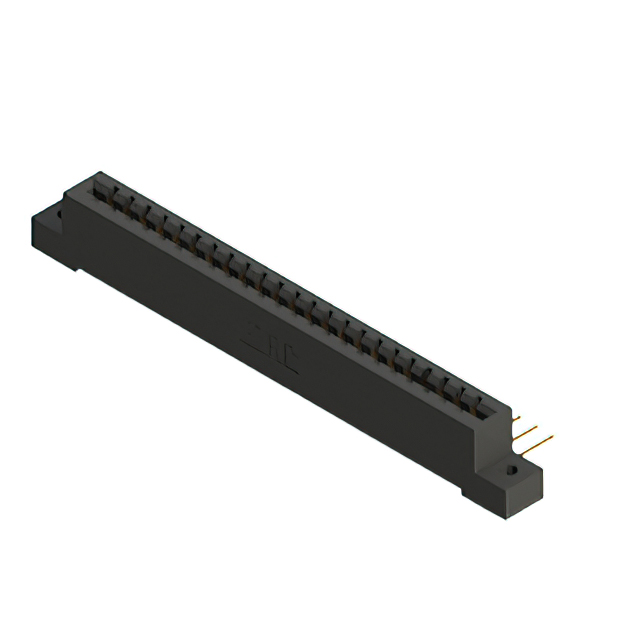

The EDAC Inc. 387-023-559-102 is a single-row card edge connector designed for through-hole mounting. It features 23 positions with a 0.156-inch (3.96 mm) pitch and accepts board thicknesses between 0.054 and 0.070 inches. The female contacts are made of copper alloy with a gold plating finish, housed in black thermoplastic polyester insulation. Operating within a temperature range of -40°C to 105°C, this component utilizes cantilever contact types for reliable signal transmission.

Edgeboard Connectors Feature Summary

• Single-edge female configuration with cantilever contact design
• Gold-plated copper alloy terminals for corrosion resistance
• Thermoplastic polyester housing for thermal stability

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Consumer electronic module connections
• Medical device circuit board interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the official EDAC 387 Series Ordering Guide to ensure correct flange and termination specifications. Confirm RoHS3 compliance status prior to integration. Cross-reference the manufacturer part number with authorized distributor catalogs to validate current availability and standard packaging quantities. Ensure compatibility with existing PCB footprint designs.

Edgeboard Connectors Selection Notes

Select this model when a single-row interface with a 0.156-inch pitch is required for vertical board insertion. The 23-position count suits moderate-density applications. Verify that the target printed circuit board thickness falls within the specified 0.054 to 0.070-inch range. Consider the through-hole termination method for robust mechanical fixation during operation.

Edgeboard Connectors Part Context

This component belongs to the EDAC 387 series of standard card edge connectors. The series provides various position counts and flange options for diverse mounting needs. The 387-023 variant specifically addresses requirements for twenty-three signal lines. It represents a standardized solution for reliable edge-card mating in commercial and industrial electronics assemblies.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 387 Series Ordering Guide for direct substitutes with identical electrical parameters but different flange configurations or termination styles. No alternative manufacturer part numbers are publicly confirmed as functionally equivalent.
