387-062-520-258

Edgeboard Connectors Overview

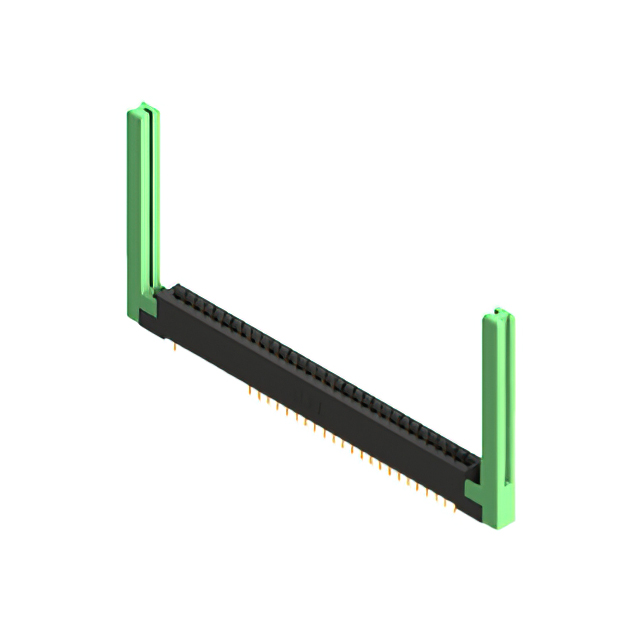

The EDAC Inc. 387-062-520-258 is a dual female card edge connector designed for through-hole mounting. It features 62 positions with a 0.156-inch (3.96 mm) pitch and two termination rows. The contacts are made of copper alloy with gold plating, housed in black thermoplastic polyester insulation. It supports PCB thicknesses from 0.054 to 0.070 inches and operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for reliable board-to-board connectivity
• Gold-plated copper alloy contacts ensure stable signal transmission
• Thermoplastic polyester housing provides thermal stability and durability

Edgeboard Connectors Applications

• Industrial control system interconnections
• Telecommunications equipment backplanes
• Consumer electronics module interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact pin count and termination style. Ensure compatibility with target PCB thickness specifications before procurement. Confirm RoHS compliance status if required by project regulations. Cross-reference manufacturer part numbers with distributor listings to avoid counterfeit components.

Edgeboard Connectors Selection Notes

Select this component when a dual-row female interface with a 0.156-inch pitch is required. Verify that the target printed circuit board thickness falls within the specified operational range. Consider the through-hole termination method for mechanical stability during assembly. Ensure the operating temperature environment aligns with the rated thermal limits of the connector materials.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 387 series, which specializes in standard card edge connectors. The series offers various position counts and termination options. The 387-062 variant specifically addresses applications requiring moderate density connections with robust mechanical retention through its through-hole design.

Edgeboard Connectors Replacement Considerations

Consult official EDAC cross-reference guides for verified substitute part numbers. Generic equivalents may not match the precise pitch or termination requirements. Verify dimensional compatibility with existing PCB footprints before substitution.
