Edgeboard Connectors Overview

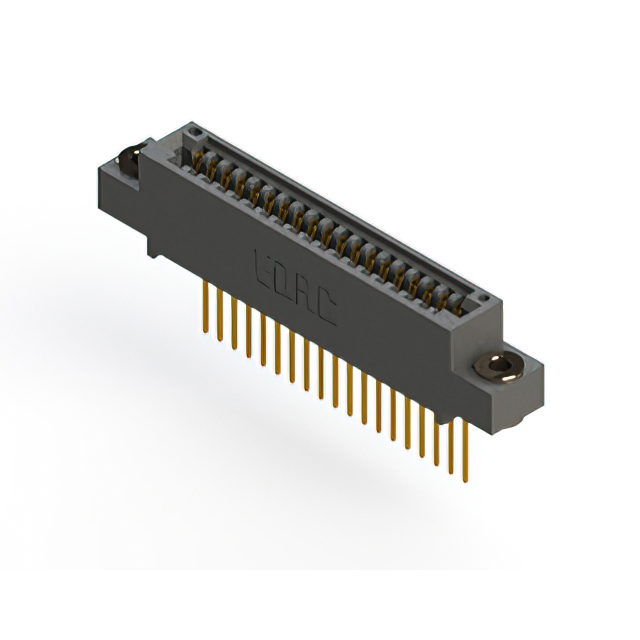

The EDAC Inc. 395-019-540-403 is a single-row card edge connector designed for vertical through-hole mounting. It features 19 positions with a 0.100 inch (2.54mm) pitch and accepts board thicknesses ranging from 0.062 to 0.093 inches (1.57 to 2.36mm). The contacts are made of copper alloy with gold plating, housed in black thermoplastic polyester insulation. Operating temperature ranges from -55°C to +125°C.

Edgeboard Connectors Feature Summary

• Single-edge female contact configuration for standard card edge applications
• Vertical orientation with through-hole termination for secure PCB integration
• Gold-plated contacts ensure reliable signal transmission and corrosion resistance

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Communication equipment backplanes
• Consumer electronics internal module connections

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the manufacturer datasheet to confirm exact pin count, plating thickness, and flange options. Ensure the target printed circuit board thickness falls within the specified acceptance range to guarantee proper mechanical engagement and electrical continuity during assembly.

Edgeboard Connectors Selection Notes

Select this component when a single-row, vertical interface is required for boards up to 2.36mm thick. Confirm that the 19-position count matches the design requirements and that the 2.54mm pitch aligns with existing layout constraints. Verify thermal stability needs against the -55°C to +125°C operating range.

Edgeboard Connectors Part Context

This part belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and termination styles, providing modular solutions for diverse electronic packaging needs. The 395 series is characterized by its reliability in high-vibration environments and compatibility with standard manufacturing processes.

Edgeboard Connectors Replacement Considerations

Direct substitutes must match the 19-position count, 2.54mm pitch, and vertical through-hole mounting style. Cross-referencing with other manufacturers requires verifying identical mechanical dimensions and contact material specifications to ensure functional equivalence.
