395-028-558-478

$12.59

Description：CONN EDGE SINGLE FML 28POS 0.100
Series：395
Mfr：EDAC Inc.
Package：Box

SKU:710c6a72823f Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

395-028-558-478 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 28POS 0.100. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 395-028-558-478

Description：CONN EDGE SINGLE FML 28POS 0.100
Series：395
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Single Edge
Gender：Female
Number of Positions/Bay/Row：28
Number of Positions：28
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：1
Pitch：0.100" (2.54mm)
Read Out：Single
Features：Card Guides
Mounting Type：Through Hole, Right Angle
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Black
Flange Feature：Top Mount Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 395-028-558-478

395-028-558-478

Edgeboard Connectors Overview

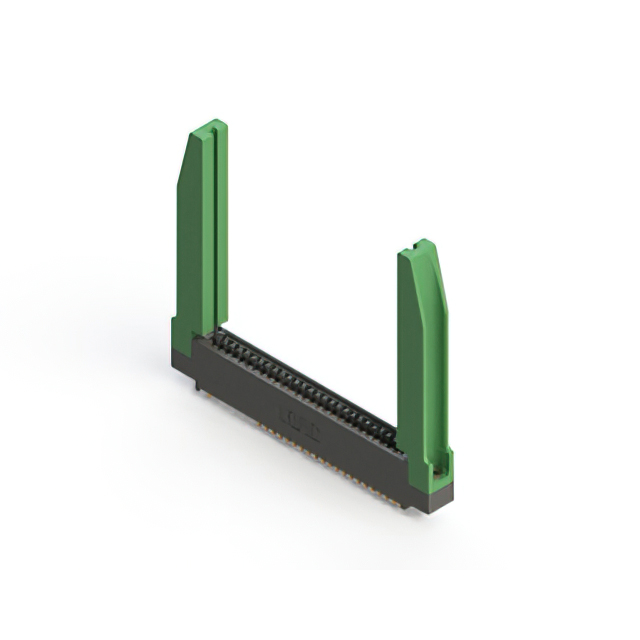

The EDAC Inc. 395-028-558-478 is a standard card edge connector designed for single-edge board applications. It features 28 positions with a 0.100 inch (2.54mm) pitch, utilizing female contacts for signal transmission. The connector employs a right-angle mounting configuration and supports through-hole termination methods. Constructed with a black thermoplastic insulator and gold-plated copper alloy contacts, it ensures reliable electrical performance. The unit operates within a temperature range of -40°C to +105°C and accommodates card thicknesses between 0.054 inches and 0.070 inches.

Edgeboard Connectors Feature Summary

Right-angle design facilitates efficient board layout integration
Gold-plated contacts provide durable corrosion resistance
Through-hole termination ensures secure mechanical attachment

Edgeboard Connectors Applications

Industrial control systems
Telecommunications equipment
Automotive electronics modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact pin count, orientation, and termination style. Ensure compatibility with target PCB stack-up dimensions and mating card thickness specifications before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a right-angle, single-row connection is required for standard thickness boards. Confirm that the 28-position capacity meets circuit requirements and that the 0.100-inch pitch aligns with existing design constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and configurations to support diverse electronic interconnection needs across multiple industrial sectors.
