Edgeboard Connectors Overview

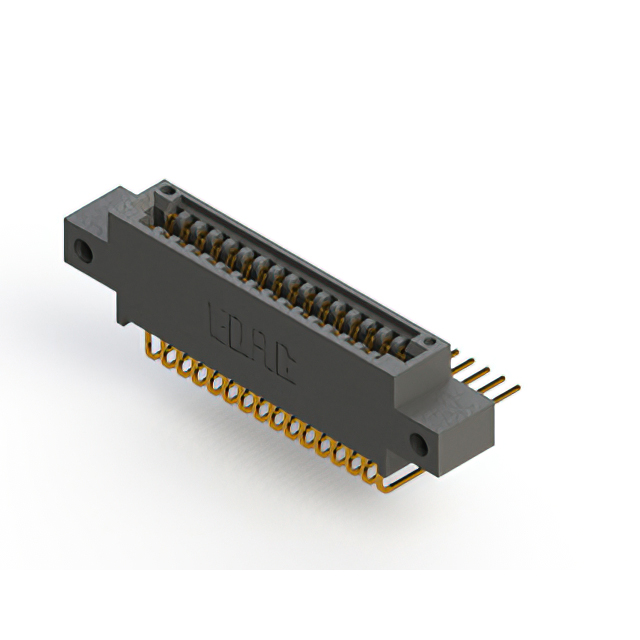

The EDAC Inc. 395-032-559-812 is a card edge connector designed for single-sided board insertion. It features 32 positions with a 0.100-inch (2.54mm) pitch. The connector utilizes female contacts with gold plating and a black thermoplastic polyester insulator. It supports through-hole termination and operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Single-sided female contact configuration for standard card edge boards
• Gold-plated cantilever spring contacts ensure reliable signal transmission
• Thermoplastic polyester insulator provides thermal stability and durability

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment backplanes
• Automotive electronic modules
• Test and measurement instrumentation

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the manufacturer datasheet to confirm contact plating thickness and insulation material variations. Ensure the target PCB thickness falls within the specified acceptance range to guarantee proper mechanical retention and electrical continuity during mating cycles.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 32-position interface is required for vertical mounting. Confirm that the application environment remains within the rated temperature limits. Validate that the PCB fabrication tolerances align with the connector's slot width specifications to prevent insertion force issues.

Edgeboard Connectors Part Context

This part belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and termination styles. This specific model represents a mid-range density option suitable for general-purpose digital signal routing in compact electronic assemblies.

Edgeboard Connectors Replacement Considerations

Cross-reference with EDAC part numbers sharing the same 32-position count and 0.100-inch pitch. Verify identical mounting orientation and termination method before substitution to maintain board layout compatibility.
