395-054-523-412

Edgeboard Connectors Overview

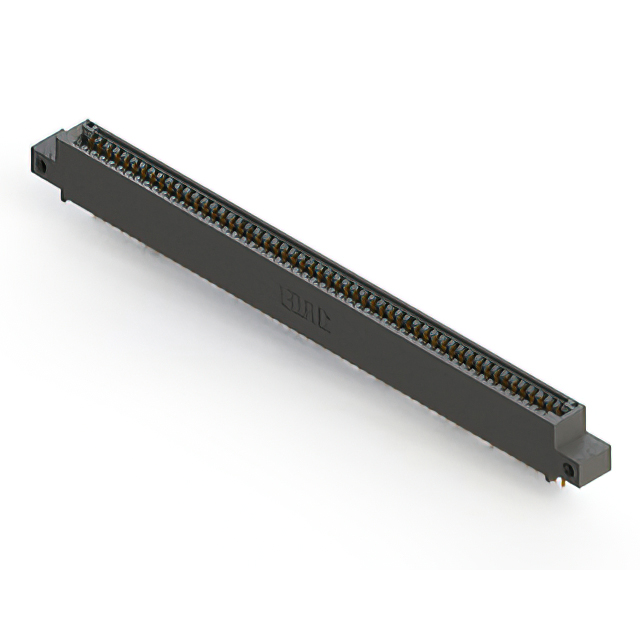

The EDAC Inc. 395-054-523-412 is a single-row card edge connector designed for vertical PCB mounting. It features 54 positions with a 0.100 inch (2.54mm) pitch. The connector utilizes female, cantilever contacts with gold plating and a black thermoplastic polyester insulator. It supports board thicknesses from 0.054 to 0.070 inches and operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Single-edge configuration with cantilever contact design for reliable signal transmission
• Gold-plated terminals ensure corrosion resistance and low contact resistance
• Thermoplastic polyester insulator provides thermal stability and mechanical durability

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment signal routing
• Automotive electronics module connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm contact plating thickness and insulation material properties. Ensure the target printed circuit board thickness falls within the specified 0.054 to 0.070 inch range for proper engagement. Confirm RoHS compliance status if required by project specifications.

Edgeboard Connectors Selection Notes

Select this component when a single-row, vertical card edge interface is required. The 54-position count suits moderate-density applications. Verify that the cantilever contact style matches the mating card edge profile. Consider the operating temperature range and environmental exposure requirements before finalizing the selection.

Edgeboard Connectors Part Context

This part belongs to the EDAC 395 Series, a line of standard card edge connectors. The series offers various position counts and mounting options. The 395-054-523-412 specifically addresses needs for single-sided, high-reliability connections in compact electronic assemblies.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-reference with other EDAC series parts only if pinout and mechanical dimensions are verified compatible.
