395-059-525-658

Edgeboard Connectors Overview

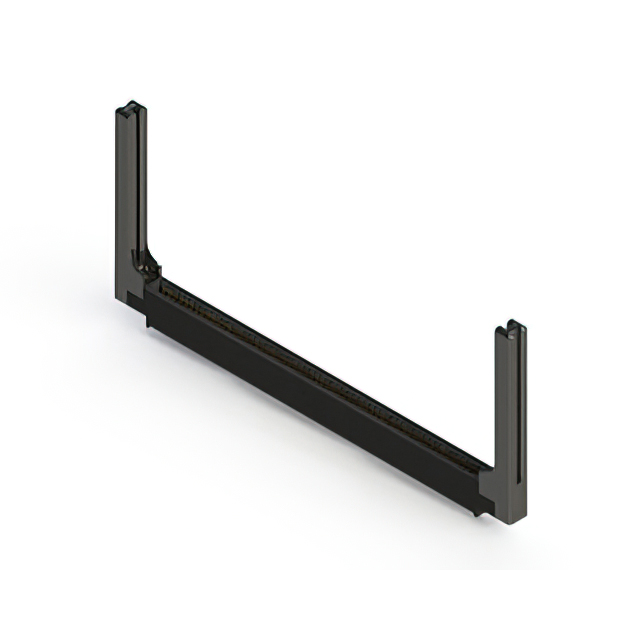

The EDAC Inc. 395-059-525-658 is a standard card edge connector from the 395 series, designed for vertical panel mounting. It features a single row of 59 female positions with a 0.100-inch (2.54 mm) pitch and 0.200-inch (5.08 mm) row spacing. The contacts are gold-plated copper alloy, rated for 3 A current, while the housing is black thermoplastic polyester. It accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). The component utilizes solder pin termination and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Vertical panel mount design for secure integration
• Gold-plated contacts ensure reliable signal transmission
• Compatible with 0.062 inch nominal PCB thickness

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment backplanes
• Test and measurement instrumentation modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm contact plating, housing color, and board thickness compatibility. Ensure the selected variant matches the required PCB dimensions and environmental operating conditions. Cross-reference the part number with authorized distributors to confirm availability status and lead times prior to finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this connector when a single-row, vertical interface is required for 0.062-inch thick boards. Confirm that the 59-position count aligns with the circuit design requirements. Verify that the panel mounting style suits the mechanical enclosure constraints. Ensure the thermal rating meets the operational environment specifications.

Edgeboard Connectors Part Context

This component belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and configurations for general-purpose electronic applications. The 395-059-525-658 specifically provides a high-density single-row solution for vertical panel installations.

Edgeboard Connectors Replacement Considerations

Direct substitutes must match the 59-position count, 2.54 mm pitch, single-row configuration, and vertical panel mount style. Verify identical PCB thickness acceptance and contact material specifications before substitution.
