Edgeboard Connectors Overview

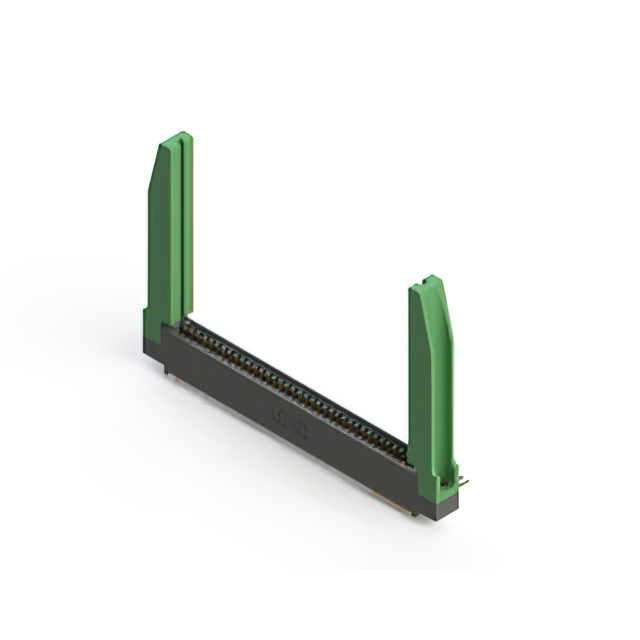

The EDAC Inc. 395-076-559-578 is a standard card edge connector designed for reliable signal transmission in electronic assemblies. It features 76 positions with a female contact type and utilizes gold plating on the contacts to ensure durability and low resistance. The connector operates at a pitch of 0.100 inches (2.54mm) and supports dual-edge card configurations. Constructed with thermoplastic polyester insulation, it accommodates board thicknesses ranging from 0.054 to 0.070 inches. Rated for currents up to 3A, it functions within a temperature range of -40°C to +105°C and meets RoHS3 compliance standards.

Edgeboard Connectors Feature Summary

• Dual-edge receptacle design for secure mating with printed circuit boards
• Gold-plated spring clip contacts provide stable electrical connection
• Thermoplastic polyester housing offers thermal stability and insulation
• Panel mount installation style ensures fixed positioning

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment backplanes
• Automotive electronics modules
• Test and measurement instrumentation

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required dual-edge configuration and pin count before ordering. Confirm that the operating environment temperature falls within the specified -40°C to +105°C range. Ensure the target PCB thickness aligns with the accepted tolerance of 0.054 to 0.070 inches. Check for any recent product change notifications or material updates from the manufacturer prior to finalizing procurement decisions.

Edgeboard Connectors Selection Notes

Select this component when a high-density, dual-sided connection is necessary for vertical panel mounting applications. The 2.54mm pitch allows for standard spacing compatibility with common PCB layouts. Consider the gold contact finish for environments where corrosion resistance is critical. Evaluate the mechanical strength requirements against the copper alloy contact material properties to ensure long-term reliability under vibration conditions.

Edgeboard Connectors Part Context

This component belongs to the EDAC 395 series of standard card edge connectors. The series provides various position counts and termination styles to support diverse electronic integration needs. As a receptacle type, it interfaces directly with corresponding edge cards rather than serving as a header. The model designation indicates specific attributes regarding row count, pitch, and termination method defined by the manufacturer's coding system.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available.
