Edgeboard Connectors Overview

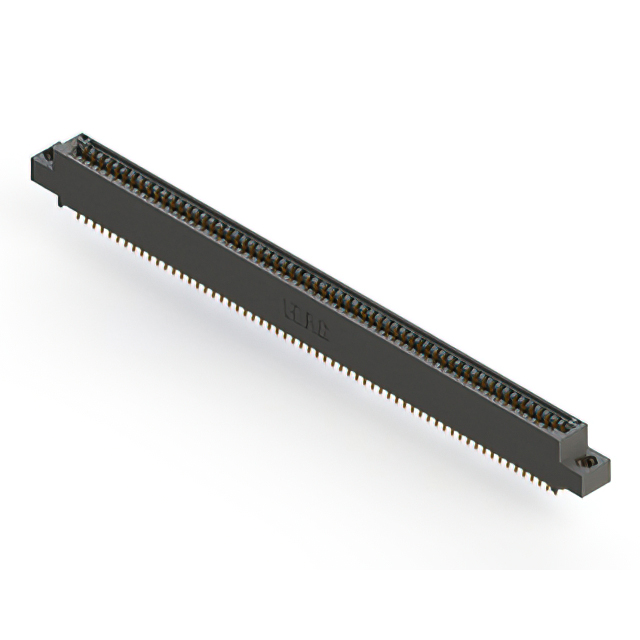

The EDAC Inc. 395-122-556-507 is a card edge connector from the 345/395 series, designed for vertical board-to-board interconnection. It features 122 positions with a 0.100-inch (2.54mm) pitch and dual-edge female contacts. The connector utilizes gold-plated cantilever spring contacts on a black thermoplastic polyester insulator. It supports PCB thicknesses of 0.054 to 0.070 inches and operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure card insertion
• Gold-plated cantilever spring contacts ensure reliable electrical connection
• Vertical mounting orientation for standard panel integration
• Thermoplastic polyester insulation provides thermal stability

Edgeboard Connectors Applications

• Industrial control systems requiring high-density I/O
• Telecommunications equipment backplanes
• Automotive electronic modules
• Medical device signal processing units

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm exact pin count and termination style. Ensure compatibility with target PCB stack-up dimensions and mating card thickness specifications before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a high-pin-count, dual-sided edge interface is required for vertical mounting. Confirm that the 0.100-inch pitch aligns with the system's routing density requirements and that the operating temperature range meets environmental constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 345/395 series of edgeboard connectors, which are engineered for robust performance in demanding environments. The series offers various position counts and termination options, providing flexibility for diverse industrial and commercial applications requiring reliable signal transmission.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for direct equivalents. Verify mechanical footprint and electrical characteristics match before considering alternative part numbers.
