4-1416200-9

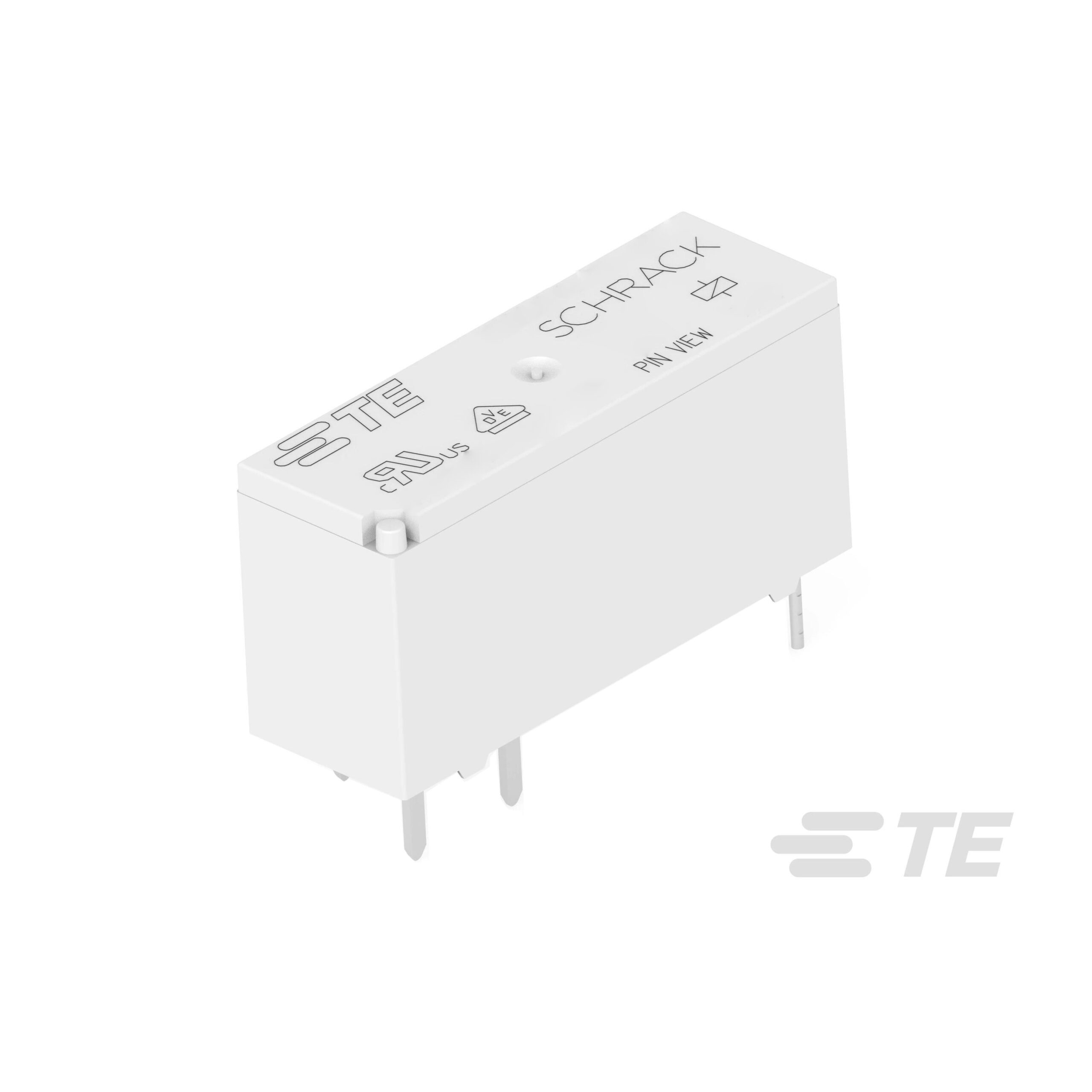

4-1416200-9 is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists TE Connectivity Potter & Brumfield Relays. Its product description is RELAY GEN PURPOSE SPDT 10A 12V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for 4-1416200-9

• Description：RELAY GEN PURPOSE SPDT 10A 12V
• Series：MSR, SCHRACK
• Mfr：TE Connectivity Potter & Brumfield Relays
• Package：Tube,Tube
• Mounting Type：Through Hole
• Coil Voltage：12VDC
• Contact Form：SPDT (1 Form C)
• Contact Rating (Current)：10:00 AM
• Switching Voltage：400VAC - Max
• Load - Max Switching：3200VA
• Coil Current：18.4 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：PC Pin
• Seal Rating：-
• Coil Insulation：Class F
• Must Operate Voltage：8.2 VDC
• Must Release Voltage：1.2 VDC
• Operating Temperature：-40°C ~ 85°C
• Contact Material：Silver Tin Oxide (AgSnO)
• Approval Agency：cURus, VDE
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：10 ms
• Release Time：5 ms

Power Relays, Over 2 Amps datasheet and documents for 4-1416200-9
