40.51.9.024.0000

Power Relays, Over 2 Amps Overview

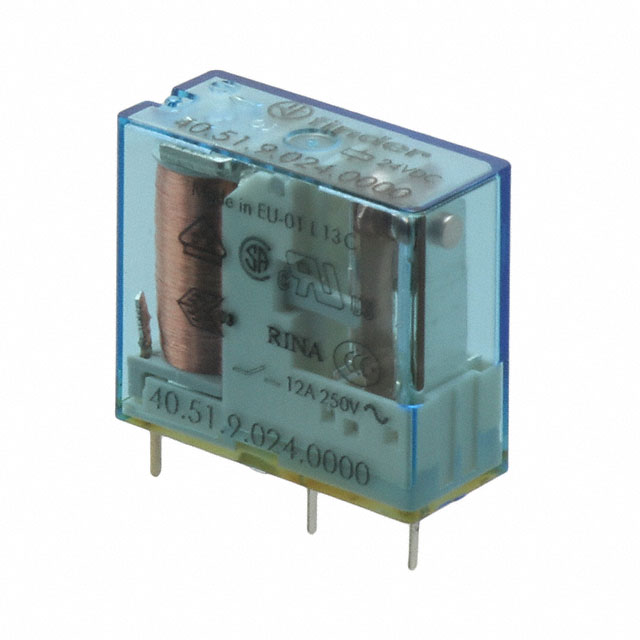

The Finder Relays, Inc. model 40.51.9.024.0000 is a general purpose power relay from the 40 Series. It features a SPDT (1 Form C) contact configuration with a maximum switching current of 10 A and a maximum switching voltage of 250 VAC. The coil operates at 24 VDC with a standard power consumption of 650 mW. The device utilizes silver-nickel (AgNi) contacts and supports both PCB mounting and plug-in installation via a 5.3 mm pin pitch. It is designed for through-hole applications and offers socketable compatibility.

Power Relays, Over 2 Amps Feature Summary

• SPDT contact configuration rated for 10 A switching current
• Standard DC coil operation at 24 VDC with 650 mW power consumption
• Compatible with 48 series relay interface modules for plug-in use
• Miniature form factor suitable for PCB or direct plug-in mounting

Power Relays, Over 2 Amps Applications

• Industrial control panels requiring compact switching solutions
• Automation systems utilizing 48 series interface modules
• General purpose signal and power circuit isolation
• Equipment needing 24 VDC coil actuation

Power Relays, Over 2 Amps Procurement Notes

Verify that the specific order matches the 40.51.9.024.0000 designation to ensure the correct 24 VDC coil voltage and 10 A rating. Confirm whether the application requires the standard 650 mW coil variant rather than sensitive coil options within the same series. Ensure the mounting method aligns with either direct PCB soldering or the use of compatible 48 series sockets as documented in official specifications.

Power Relays, Over 2 Amps Selection Notes

Select this component when a 24 VDC coil is required for a 10 A SPDT switching application. The 5.3 mm pin pitch allows for integration into existing layouts designed for the 40 Series family. Consider the 650 mW coil power if thermal management is not a primary constraint compared to lower-power sensitive coil alternatives. Verify space constraints against the miniature footprint requirements.

Power Relays, Over 2 Amps Part Context

This relay belongs to the Finder 40 Series, a line of miniature PCB and plug-in relays. The series is characterized by a standardized 5.3 mm pin pitch and compatibility with various interface modules. The 40.51.9.024.0000 specifically denotes the SPDT contact type, 24 VDC coil voltage, and standard coil power variant within this family.

Power Relays, Over 2 Amps Replacement Considerations

Public confirmed substitute part numbers are not provided in the available documentation. Users should verify cross-compatibility with other 40 Series variants only if coil voltage and contact ratings match exactly.
